How to Obfuscate Swift Metadata in iOS Apps

Last updated August 8, 2024 by Appdome

Learn to Obfuscate Swift Metadata in iOS apps, in mobile CI/CD with a Data-Driven DevSecOps™ build system.

What is Swift Metadata?

Swift metadata refers to the runtime metadata generated by the Swift compiler for types and other constructs in Swift programs. This metadata plays a crucial role in supporting various language features and runtime behaviors. Reverse Engineering tools parse Swift metadata embedded in an executable in order to provide additional context when trying to infer the logic of the app. For example, Swift Metadata describes a class hierarchy, method implementations, enums, structs, and other types that will contain relevant information about their structure and properties. Obfuscating Swift Metadata prevents reverse engineering tools from properly parsing the binary, which makes these tools far less effective.

How Does Obfuscating Swift Metadata Protect Your Mobile App?

Obfuscating Swift Metadata can significantly enhance the security of your iOS applications by making it more difficult for attackers to analyze and reverse engineer the app’s code.

Here’s how this protection mechanism benefits your mobile app:

Prevents Code Comprehension:

By obfuscating the metadata, you obscure the details that would typically be available to reverse engineering tools. This includes information about class hierarchies, method signatures, and data structures. Without clear insights into these aspects, comprehending the underlying logic and structure of the app becomes significantly harder for an attacker.

Reduces Attack Surfaces:

When metadata is obfuscated, potential attackers cannot easily identify weaknesses or entry points within the app’s architecture. This obfuscation doesn’t just protect the code but also reduces the overall attack surface by hiding the relationships and interfaces between components.

Protects Intellectual Property:

Your application’s logic and design are vital intellectual properties that can give you a competitive edge. Obfuscating Swift Metadata helps protect your business’s proprietary techniques and processes from being copied or reused by competitors through reverse engineering.

Enhances Other Security Measures:

Metadata obfuscation complements other security practices such as code obfuscation and encryption. When combined, these methods provide a robust defense against various forms of analysis and attacks, fortifying your app’s overall security posture.

Meets Compliance Requirements:

Some industries have strict regulations about protecting data and ensuring privacy.

By obfuscating metadata, you can help ensure that your app meets these compliance requirements, which often include provisions to protect against reverse engineering and other forms of tampering. Incorporating metadata obfuscation as part of a comprehensive security strategy is crucial for protecting your app from sophisticated reverse engineering tools and techniques, thereby safeguarding your application’s integrity, security, and competitive advantage.

Prerequisites for Using Obfuscate Swift Metadata:

To use Appdome’s mobile app security build system to Obfuscate Swift Metadata , you’ll need:

Appdome account (create a free Appdome account here)
A license for Obfuscate Swift Metadata
Mobile App (.ipa for iOS)
Signing Credentials (see Signing Secure Android apps and Signing Secure iOS apps)

Obfuscate Swift Metadata on iOS apps using Appdome

On Appdome, follow these simple steps to create self-defending iOS Apps that Obfuscate Swift Metadata without an SDK or gateway:

Upload the Mobile App to Appdome.
1. Upload an app to Appdome’s Mobile App Security Build System
2. Upload Method: Appdome Console or DEV-API
3. iOS Formats: .ipa
4. Obfuscate Swift Metadata Compatible With: Obj-C, Java, Swift, Flutter, React Native, Unity, Xamarin, Cordova and more
Build the feature: Obfuscate Swift Metadata.
1. Building Obfuscate Swift Metadata by using Appdome’s DEV-API:
  1. Create and name the Fusion Set (security template) that will contain the Obfuscate Swift Metadata feature as shown below:
  2. Follow the steps in Sections 2.2.1-2.2.2 of this article, Building the Obfuscate Swift Metadata feature via Appdome Console, to add the Obfuscate Swift Metadata feature to this Fusion Set.
  3. Open the Fusion Set Detail Summary by clicking the “...” symbol on the far-right corner of the Fusion Set. Copy the Fusion Set ID from the Fusion Set Detail Summary (as shown below):

    Figure 2: Fusion Set Detail Summary
    Note: Annotating the Fusion Set to identify the protection(s) selected is optional only (not mandatory).
  4. Follow the instructions below to use the Fusion Set ID inside any standard mobile DevOps or CI/CD toolkit like Bitrise, App Center, Jenkins, Travis, Team City, Circle CI or other system:

    Build an API for the app – for instructions, see the tasks under Appdome API Reference Guide

    Look for sample APIs in Appdome’s GitHub Repository
2. Building the Obfuscate Swift Metadata feature via Appdome Console

  To build the Obfuscate Swift Metadata protection by using Appdome Console, follow the instructions below.
  1. Where: Inside the Appdome Console, go to Build > Security Tab > TOTALCode™ Obfuscation section.
    Like all other options in ONEShield™, Obfuscate Swift Metadata is turned on by default, as shown below:

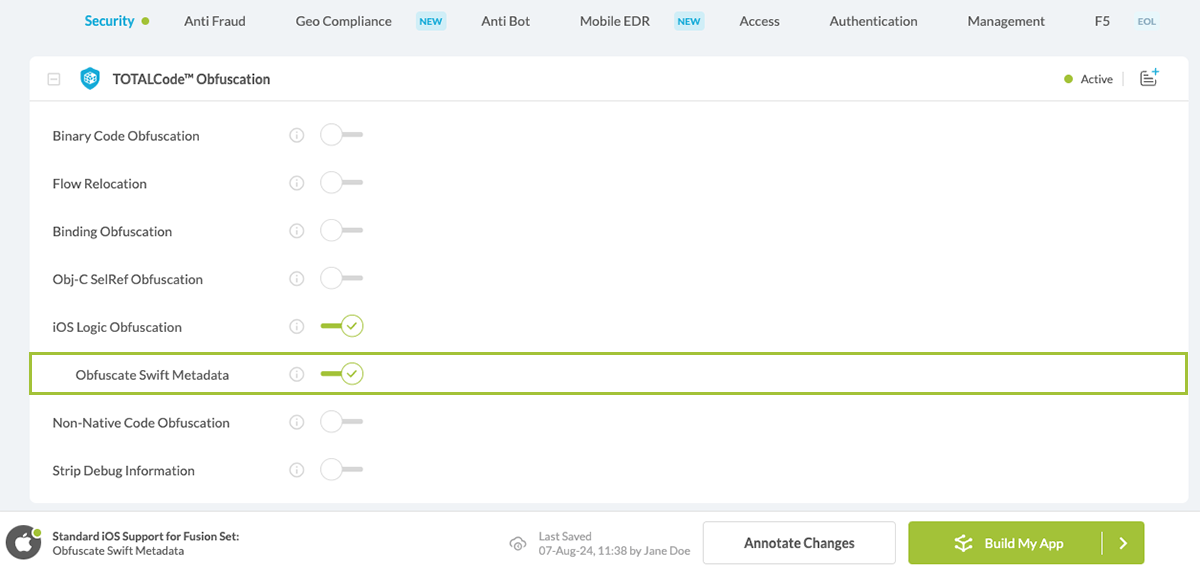

    Figure 3: Obfuscate Swift Metadata option
    Note: The App Compromise Notification contains an easy to follow default remediation path for the mobile app end user. You can customize this message as required to achieve brand specific support, workflow or other messaging.
  2. When you enable iOS Logic Obfuscation you'll notice that your Fusion Set you created in step 2.1.1 now bears the icon of the protection category that contains Obfuscate Swift Metadata

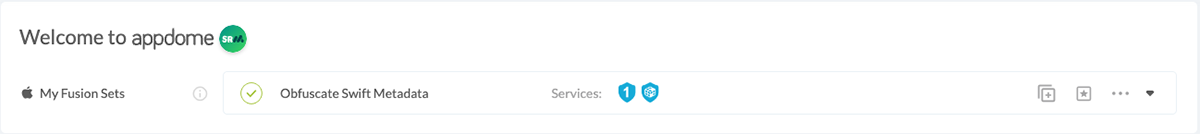

    Figure 4: Fusion Set that displays the newly added Obfuscate Swift Metadata protection
  3. Click Build My App at the bottom of the Build Workflow (shown in Figure 3).
Congratulations! The Obfuscate Swift Metadata protection is now added to the mobile app
Certify the Obfuscate Swift Metadata feature in iOS Apps

After building Obfuscate Swift Metadata, Appdome generates a Certified Secure™ certificate to guarantee that the Obfuscate Swift Metadata protection has been added and is protecting the app. To verify that the Obfuscate Swift Metadata protection has been added to the mobile app, locate the protection in the Certified Secure™ certificate as shown below:

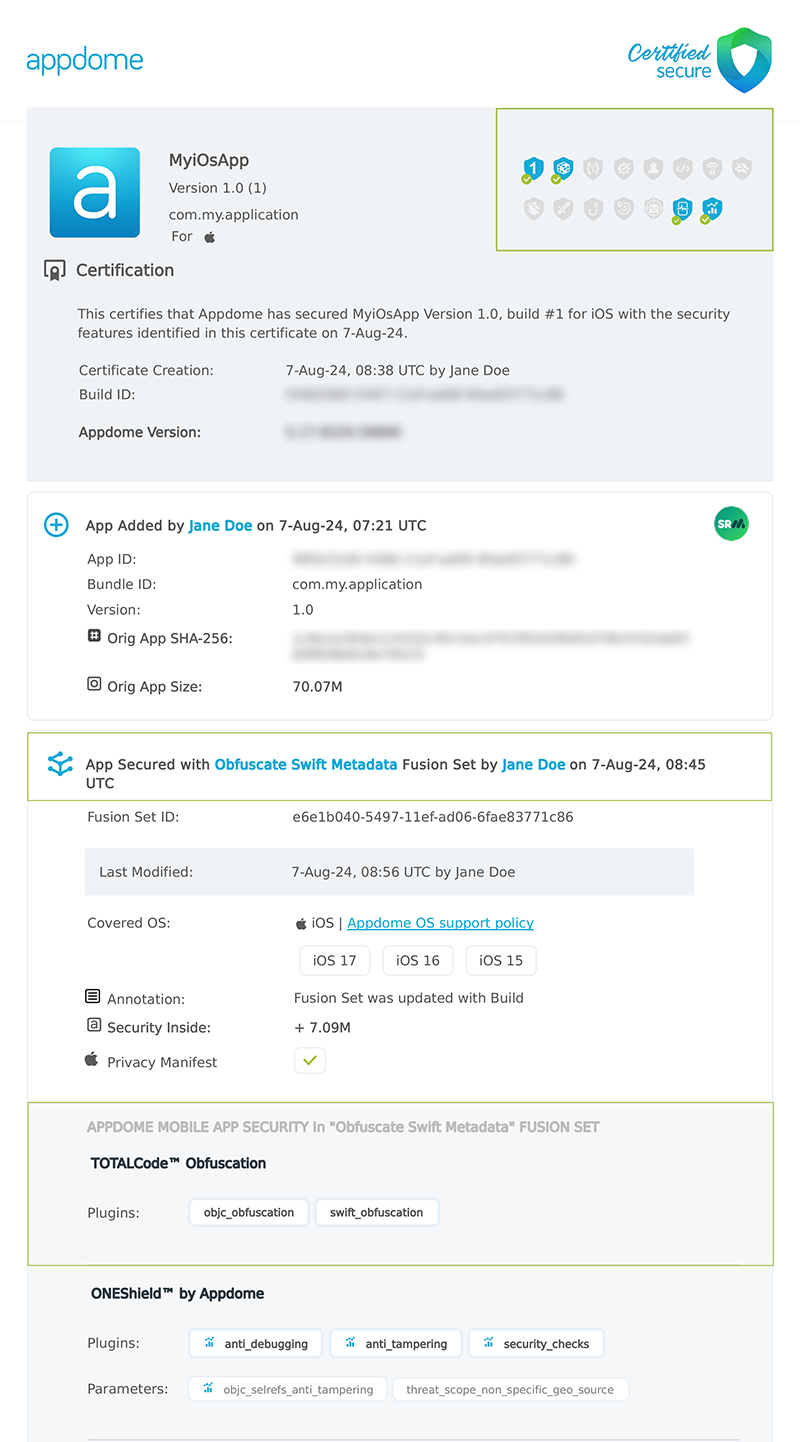

Figure 5: Certified Secure™ certificate

Each Certified Secure™ certificate provides DevOps and DevSecOps organizations the entire workflow summary, audit trail of each build, and proof of protection that Obfuscate Swift Metadata has been added to each iOS app. Certified Secure provides instant and in-line DevSecOps compliance certification that Obfuscate Swift Metadata and other mobile app security features are in each build of the mobile app

Using Threat-Events™ for Swift Metadata Intelligence and Control in iOS Apps

Appdome Threat-Events™ provides consumable in-app mobile app attack intelligence and defense control when Swift Metadata is detected. To consume and use Threat-Events™ for Swift Metadata in iOS Apps, use AddObserverForName in Notification Center, and the code samples for Threat-Events™ for Swift Metadata shown below.

The specifications and options for Threat-Events™ for Swift Metadata are:

Threat-Event™ Elements	Obfuscate Swift Metadata Method Detail
Appdome Feature Name	Obfuscate Swift Metadata
Threat-Event Mode
OFF, IN-APP DEFENSE	Appdome detects, defends and notifies user (standard OS dialog) using customizable messaging.
ON, IN-APP DETECTION	Appdome detects the attack or threat and passes the event in a standard format to the app for processing (app chooses how and when to enforce).
ON, IN-APP DEFENSE	Uses Appdome Enforce mode for any attack or threat and passes the event in a standard format to the app for processing (gather intel on attacks and threats without losing any protection).
Certified Secure™ Threat Event Check	x
Visible in ThreatScope™	x
Developer Parameters for Obfuscating Swift Metadata Threat-Event™
Threat-Event NAME
Threat-Event DATA	reasonData
Threat-Event CODE	reasonCode
Threat-Event REF
Threat-Event SCORE
currentThreatEventScore	Current Threat-Event score
threatEventsScore	Total Threat-events score

Threat-Event Context Keys
message	Message displayed for the user on event
failSafeEnforce	Timed enforcement against the identified threat
externalID	The external ID of the event which can be listened via Threat Events
osVersion	OS version of the current device
deviceModel	Current device model
deviceManufacturer	The manufacturer of the current device
fusedAppToken	The task ID of the Appdome fusion of the currently running app
kernelInfo	Info about the kernel: system name, node name, release, version and machine.
deviceID	Current device ID
reasonCode	Reason code of the occurred event
buildDate	Appdome fusion date of the current application
devicePlatform	OS name of the current device
updatedOSVersion	Is the OS version up to date
timeZone	Time zone
deviceFaceDown	Is the device face down
locationLong	Location longitude conditioned by location permission
locationLat	Location latitude conditioned by location permission
locationState	Location state conditioned by location permission
wifiSsid	Wifi SSID
wifiSsidPermissionStatus	Wifi SSID permission status
threatCode	The last six characters of the threat code specify the OS, allowing the Threat Resolution Center to address the attack on the affected device.

With Threat-Events™ enabled (turned ON), iOS developers can get detailed attack intelligence and granular defense control in iOS applications and create amazing user experiences for all mobile end users when Swift Metadata is detected.

The following is a code sample for native iOS apps, which uses all values in the specification above for Obfuscate Swift Metadata:

Important! Replace all placeholder instances of <Context Key> with the specific name of your threat event context key across all language examples. This is crucial to ensure your code functions correctly with the intended event data. For example, The <Context Key> could be the message, externalID, OS Version, reason code, etc.

                    let center = NotificationCenter.default
                    center.addObserver(forName: Notification.Name(""), object: nil, queue: nil) { (note) in
                        guard let usrInf = note.userInfo else {
                            return
                        }

                        let message = usrInf["message"]; // Message shown to the user
                        let reasonData = usrInf["reasonData"]; // Threat detection cause
                        let reasonCode = usrInf["reasonCode"]; // Event reason code

                        // Current threat event score
                        let currentThreatEventScore = usrInf["currentThreatEventScore"];

                        // Total threat events score
                        let threatEventsScore = usrInf["threatEventsScore"];

                        // Replace '' with your specific event context key
                        // let variable = usrInf[""];

                        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
                    }

x

let center = NotificationCenter.default
center.addObserver(forName: Notification.Name(""), object: nil, queue: nil) { (note) in
    guard let usrInf = note.userInfo else {
        return
    }
​
    let message = usrInf["message"]; // Message shown to the user
    let reasonData = usrInf["reasonData"]; // Threat detection cause
    let reasonCode = usrInf["reasonCode"]; // Event reason code
​
    // Current threat event score
    let currentThreatEventScore = usrInf["currentThreatEventScore"];
​
    // Total threat events score
    let threatEventsScore = usrInf["threatEventsScore"];
​
    // Replace '<Context Key>' with your specific event context key
    // let variable = usrInf["<Context Key>"];
​
    // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
}

                    [[NSNotificationCenter defaultCenter] addObserverForName: @"" object:nil queue:nil usingBlock:^(NSNotification *org_note) {
                        __block NSNotification *note = org_note;
                        dispatch_async(dispatch_get_main_queue(), ^(void) {
                            // Message shown to the user
                            NSString *message = [[note userInfo] objectForKey:@"message"];

                            // Threat detection cause
                            NSString *reasonData = [[note userInfo] objectForKey:@"reasonData"];

                            // Event reason code
                            NSString *reasonCode = [[note userInfo] objectForKey:@"reasonCode"];

                            // Current threat event score
                            NSString *currentThreatEventScore = [[note userInfo] objectForKey:@"currentThreatEventScore"];

                            // Total threat events score
                            NSString *threatEventsScore = [[note userInfo] objectForKey:@"threatEventsScore"];

                            // Replace '' with your specific event context key
                            // NSString *variable = [[note userInfo] objectForKey:@""];

                            // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
                        });
                    }];

xxxxxxxxxx

[[NSNotificationCenter defaultCenter] addObserverForName: @"" object:nil queue:nil usingBlock:^(NSNotification *org_note) {
        __block NSNotification *note = org_note;
        dispatch_async(dispatch_get_main_queue(), ^(void) {

        // Message shown to the user
        NSString *message = [[note userInfo] objectForKey:@"message"];

        // Threat detection cause
        NSString *reasonData = [[note userInfo] objectForKey:@"reasonData"];

        // Event reason code
        NSString *reasonCode = [[note userInfo] objectForKey:@"reasonCode"];
​
        // Current threat event score
        NSString *currentThreatEventScore = [[note userInfo]        objectForKey:@"currentThreatEventScore"];
​
        // Total threat events score
        NSString *threatEventsScore = [[note userInfo] objectForKey:@"threatEventsScore"];
​
        // Replace '<Context Key>' with your specific event context key
        // NSString *variable = [[note userInfo] objectForKey:@"<Context Key>"];
​
        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
    });
}];

                const { ADDevEvents } = NativeModules;
                const aDDevEvents = new NativeEventEmitter(ADDevEvents);

                function registerToDevEvent(action, callback) {
                    NativeModules.ADDevEvents.registerForDevEvent(action);
                    aDDevEvents.addListener(action, callback);
                }

                export function registerToAllEvents() {
                    registerToDevEvent(
                        "",
                        (userinfo) => Alert.alert(JSON.stringify(userinfo))

                        var message = userinfo["message"] // Message shown to the user
                        var reasonData = userinfo["reasonData"] // Threat detection cause
                        var reasonCode = userinfo["reasonCode"] // Event reason code

                        // Current threat event score
                        var currentThreatEventScore = userinfo["currentThreatEventScore"]

                        // Total threat events score
                        var threatEventsScore = userinfo["threatEventsScore"]

                        // Replace '' with your specific event context key
                        // var variable = userinfo[""]

                        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
                    );
                }

xxxxxxxxxx

const { ADDevEvents } = NativeModules;
const aDDevEvents = new NativeEventEmitter(ADDevEvents);
​
function registerToDevEvent(action, callback) {
    NativeModules.ADDevEvents.registerForDevEvent(action);
    aDDevEvents.addListener(action, callback);
}
​
export function registerToAllEvents() {
    registerToDevEvent(
        "",
        (userinfo) => Alert.alert(JSON.stringify(userinfo))
​
        var message = userinfo["message"] // Message shown to the user
        var reasonData = userinfo["reasonData"] // Threat detection cause
        var reasonCode = userinfo["reasonCode"] // Event reason code
​
        // Current threat event score
        var currentThreatEventScore = userinfo["currentThreatEventScore"]
​
        // Total threat events score
        var threatEventsScore = userinfo["threatEventsScore"]
​
        // Replace '<Context Key>' with your specific event context key
        // var variable = userinfo["<Context Key>"]
​
        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
    );
}

                RegisterReceiver(new ThreatEventReceiver(), new IntentFilter(""));

                class ThreatEventReceiver : BroadcastReceiver
                {
                    public override void OnReceive(Context context, Intent intent)
                    {
                        String message = intent.GetStringExtra("message"); // Message shown to the user
                        String reasonData = intent.GetStringExtra("reasonData"); // Threat detection cause
                        String reasonCode = intent.GetStringExtra("reasonCode"); // Event reason code

                        // Current threat event score
                        String currentThreatEventScore = intent.GetStringExtra("currentThreatEventScore");

                        // Total threat events score
                        String threatEventsScore = intent.GetStringExtra("threatEventsScore");

                        // Replace '' with your specific event context key
                        // String variable = intent.GetStringExtra("");

                        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
                    }
                }

x

RegisterReceiver(new ThreatEventReceiver(), new IntentFilter(""));

class ThreatEventReceiver : BroadcastReceiver
{
    public override void OnReceive(Context context, Intent intent)
    {
        // Message shown to the user
        String message = intent.GetStringExtra("message");
​
        // Threat detection cause
        String reasonData = intent.GetStringExtra("reasonData");
​
        // Event reason code
        String reasonCode = intent.GetStringExtra("reasonCode");
​
        // Current threat event score
        String currentThreatEventScore = intent.GetStringExtra("currentThreatEventScore");
​
        // Total threat events score
        String threatEventsScore = intent.GetStringExtra("threatEventsScore");
​
        // Replace '<Context Key>' with your specific event context key
        // String variable = intent.GetStringExtra("<Context Key>");
​
        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
    }
}

                NSNotificationCenter.DefaultCenter.AddObserver(
                    (NSString)"", // Threat-Event Identifier
                    delegate (NSNotification notification)
                    {
                        // Message shown to the user
                        var message = notification.UserInfo.ObjectForKey("message");

                        // Threat detection cause
                        var reasonData = notification.UserInfo.ObjectForKey("reasonData");

                        // Event reason code
                        var reasonCode = notification.UserInfo.ObjectForKey("reasonCode");

                        // Current threat event score
                        var currentThreatEventScore = notification.UserInfo.ObjectForKey("currentThreatEventScore");

                        // Total threat events score
                        var threatEventsScore = notification.UserInfo.ObjectForKey("threatEventsScore");

                        // Replace '' with your specific event context key
                        // var variable = notification.UserInfo.ObjectForKey("");

                        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
                    }
                );

x

NSNotificationCenter.DefaultCenter.AddObserver(
    (NSString)"", // Threat-Event Identifier
    delegate (NSNotification notification)
    {
        // Message shown to the user
        var message = notification.UserInfo.ObjectForKey("message");
​
        // Threat detection cause
        var reasonData = notification.UserInfo.ObjectForKey("reasonData");
​
        // Event reason code
        var reasonCode = notification.UserInfo.ObjectForKey("reasonCode");
​
        // Current threat event score
        var currentThreatEventScore = notification.UserInfo.ObjectForKey("currentThreatEventScore");
​
        // Total threat events score
        var threatEventsScore = notification.UserInfo.ObjectForKey("threatEventsScore");
​
        // Replace '<Context Key>' with your specific event context key
        // var variable = notification.UserInfo.ObjectForKey("<Context Keys>");
​
        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
    }
);

                window.broadcaster.addEventListener("", function(userInfo) {
                    var message = userInfo.message // Message shown to the user
                    var reasonData = userInfo.reasonData // Threat detection cause
                    var reasonCode = userInfo.reasonCode // Event reason code

                    // Current threat event score
                    var currentThreatEventScore = userInfo.currentThreatEventScore

                    // Total threat events score
                    var threatEventsScore = userInfo.threatEventsScore

                    // Replace '' with your specific event context key
                    // var variable = userInfo.

                    // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
                });

xxxxxxxxxx

window.broadcaster.addEventListener("", function(userInfo) {
    var message = userInfo.message // Message shown to the user
    var reasonData = userInfo.reasonData // Threat detection cause
    var reasonCode = userInfo.reasonCode // Event reason code
​
    // Current threat event score
    var currentThreatEventScore = userInfo.currentThreatEventScore
​
    // Total threat events score
    var threatEventsScore = userInfo.threatEventsScore
​
    // Replace '<Context Key>' with your specific event context key
    // var variable = userInfo.<Context Keys>
​
    // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
});

                import 'dart:async';
                import 'package:flutter/material.dart';
                import 'package:flutter/services.dart';

                class PlatformChannel extends StatefulWidget {
                    const PlatformChannel({super.key});

                    @override
                    State createState() => _PlatformChannelState();
                }

                class _PlatformChannelState extends State {
                    // Replace with your EventChannel name
                    static const String _eventChannelName = "";
                    static const EventChannel _eventChannel = EventChannel(_eventChannelName);

                    @override
                    void initState() {
                        super.initState();
                        _eventChannel.receiveBroadcastStream().listen(_onEvent, onError: _onError);
                    }

                    void _onEvent(Object? event) {
                        setState(() {
                            // Adapt this section based on your specific event data structure
                            var eventData = event as Map;

                            // Example: Accessing 'externalID' field from the event
                            var externalID = eventData['externalID'];

                            // Customize the rest of the fields based on your event structure
                            String message = eventData['message']; // Message shown to the user
                            String reasonData = eventData['reasonData']; // Threat detection cause
                            String reasonCode = eventData['reasonCode']; // Event reason code

                            // Current threat event score
                            String currentThreatEventScore = eventData['currentThreatEventScore'];

                            // Total threat events score
                            String threatEventsScore = eventData['threatEventsScore'];

                            // Replace '' with your specific event context key
                            // String variable = eventData[''];
                        });
                    }

                    // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
                }

x

import 'dart:async';
import 'package:flutter/material.dart';
import 'package:flutter/services.dart';
​
class PlatformChannel extends StatefulWidget {
    const PlatformChannel({super.key});
​
    @override
    State<PlatformChannel> createState() => _PlatformChannelState();
}
​
class _PlatformChannelState extends State<PlatformChannel> {
    // Replace with your EventChannel name
    static const String _eventChannelName = "";
    static const EventChannel _eventChannel = EventChannel(_eventChannelName);
​
    @override
    void initState() {
        super.initState();
        _eventChannel.receiveBroadcastStream().listen(_onEvent, onError: _onError);
    }
​
    void _onEvent(Object? event) {
        setState(() {
            // Adapt this section based on your specific event data structure
            var eventData = event as Map;
​
            // Example: Accessing 'externalID' field from the event
            var externalID = eventData['externalID'];
​
            // Customize the rest of the fields based on your event structure
            String message = eventData['message']; // Message shown to the user
            String reasonData = eventData['reasonData']; // Threat detection cause
            String reasonCode = eventData['reasonCode']; // Event reason code
​
            // Current threat event score
            String currentThreatEventScore = eventData['currentThreatEventScore'];
​
            // Total threat events score
            String threatEventsScore = eventData['threatEventsScore'];
​
            // Replace '<Context Key>' with your specific event context key
            // String variable = eventData['<Context Keys>'];
        });
    }
​
    // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
}

Using Appdome, there are no development or coding prerequisites to build secured iOS Apps by using Obfuscate Swift Metadata. There is no SDK and no library to code or implement in the app and no gateway to deploy in your network. All protections are built into each app and the resulting app is self-defending and self-protecting.

Releasing and Publishing Mobile Apps with Obfuscate Swift Metadata

After successfully securing your app by using Appdome, there are several available options to complete your project, depending on your app lifecycle or workflow. These include:

Customizing, Configuring & Branding Secure Mobile Apps
Deploying/Publishing Secure mobile apps to Public or Private app stores
Releasing Secured Android & iOS Apps built on Appdome.

How Obfuscating iOS Logic Enhances iOS App Security

How to Implement Non-Native Code Obfuscation in Android & iOS Mobile Apps

How to Obfuscate Debug Info in iOS Apps

How Do I Learn More?

If you have any questions, please send them our way at support.appdome.com or via the chat window on the Appdome platform.

Thank you!

Thanks for visiting Appdome! Our mission is to secure every app on the planet by making mobile app security easy. We hope we’re living up to the mission with your project.

How to Obfuscate Swift Metadata in iOS Apps

What is Swift Metadata?

How Does Obfuscating Swift Metadata Protect Your Mobile App?

Prerequisites for Using Obfuscate Swift Metadata:

Obfuscate Swift Metadata on iOS apps using Appdome

Upload the Mobile App to Appdome.

Upload an app to Appdome’s Mobile App Security Build System

Build the feature: Obfuscate Swift Metadata.

Building Obfuscate Swift Metadata by using Appdome’s DEV-API:

Building the Obfuscate Swift Metadata feature via Appdome Console

Certify the Obfuscate Swift Metadata feature in iOS Apps

Using Threat-Events™ for Swift Metadata Intelligence and Control in iOS Apps

Related Articles:

How Do I Learn More?

Thank you!

Stop AI-Based Attacks While Automating PCI DSS 4.0 Compliance

Supercharge the Experience in Mobile App Defense

Better User Experience in Mobile Defense

Shifting Dynamics in Mobile Fraud Prevention: A Call for Developer Responsibility
