How to Obfuscate Debug Information & Prevent Reverse Engineering in Android Apps

Last updated November 30, 2023 by Appdome

Learn to Obfuscate Debug Information in Android apps, in mobile CI/CD with a Data-Driven DevSecOps™ build system.

What is Debug Information?

Debug information is data stored inside the code of a mobile app which aids the developer in troubleshooting, tracking down issues, and fixing bugs more easily. Debug information can also be used by bad actors who want to learn how your app works by reverse engineering your code (or other malicious purposes like copying or stealing your intellectual property). Your final production app should be built in release mode (which does not contain debug information). However, more often than not, the released mobile app does contain debug information such as source code file names, line numbers, variable names and symbol names. Rather than going back to the developer and asking them to modify the app, Appdome offers a quick and easy way to strip debug information from the Android or iOS app – instantly without code or coding.

Why Obfuscate Debug Information in Android Apps?

Debug information in mobile apps can display information that leaves a mobile app vulnerable to attacks. Examples of the information which can be exposed are the source code file names, line numbers, variable names and symbol names to name a few. You can use Appdome to remove debug information from the logs for additional mobile app protection.

Prerequisites for Using Strip Debug Information:

To use Appdome’s mobile app security build system to Obfuscate Debug Information , you’ll need:

Appdome account (create a free Appdome account here)
A license for Strip Debug Information
Mobile App (.apk or .aab for Android)
Signing Credentials (see Signing Secure Android apps and Signing Secure iOS apps)

Obfuscate Debug Information on Android apps using Appdome

On Appdome, follow these 3 simple steps to create self-defending Android Apps that Obfuscate Debug Information without an SDK or gateway:

Upload the Mobile App to Appdome.
1. Upload an app to Appdome’s Mobile App Security Build System
2. Upload Method: Appdome Console or DEV-API
3. Android Formats: .apk or .aab
4. Strip Debug Information Compatible With: Java, JS, C++, C#, Kotlin, Flutter, React Native, Unity, Xamarin, Cordova and other Android apps
Build the feature: Strip Debug Information.
1. Building Strip Debug Information by using Appdome’s DEV-API:

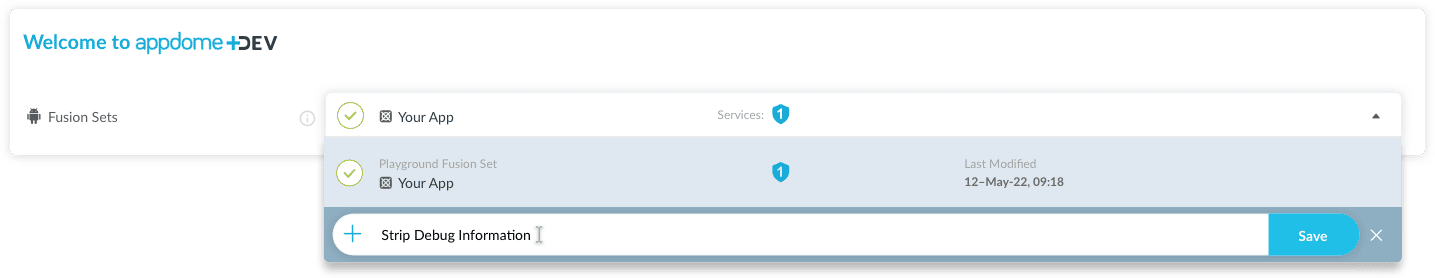

  1. Create and name the Fusion Set (security template) that will contain the Strip Debug Information feature as shown below:
  2. Follow the steps in Sections 2.2.1-2.2.2 of this article, Building the Strip Debug Information feature via Appdome Console, to add the Strip Debug Information feature to this Fusion Set.
  3. Open the Fusion Set Detail Summary by clicking the “...” symbol on the far-right corner of the Fusion Set. Copy the Fusion Set ID from the Fusion Set Detail Summary (as shown below):

    Figure 2: Fusion Set Detail Summary
    Note: Annotating the Fusion Set to identify the protection(s) selected is optional only (not mandatory).
  4. Follow the instructions below to use the Fusion Set ID inside any standard mobile DevOps or CI/CD toolkit like Bitrise, App Center, Jenkins, Travis, Team City, Circle CI or other system:

    Build an API for the app – for instructions, see the tasks under Appdome API Reference Guide

    Look for sample APIs in Appdome’s GitHub Repository
2. Building the Strip Debug Information feature via Appdome Console

  To build the Strip Debug Information protection by using Appdome Console, follow the instructions below.
  1. Where: Inside the Appdome Console, go to Build > Security Tab > TOTALCode™ Obfuscation section.
    Like all other options in ONEShield™, Strip Debug Information is turned on by default, as shown below:

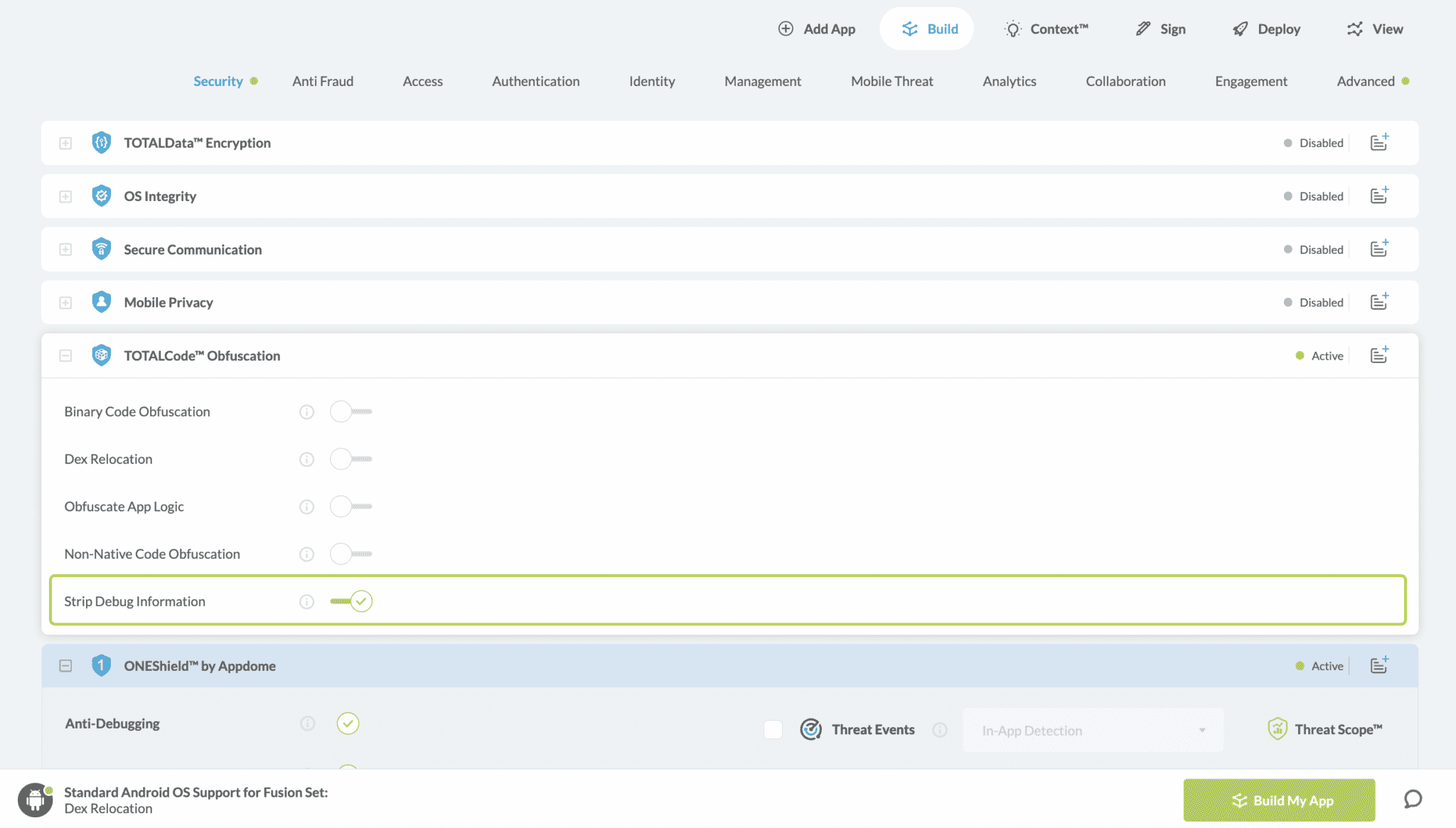

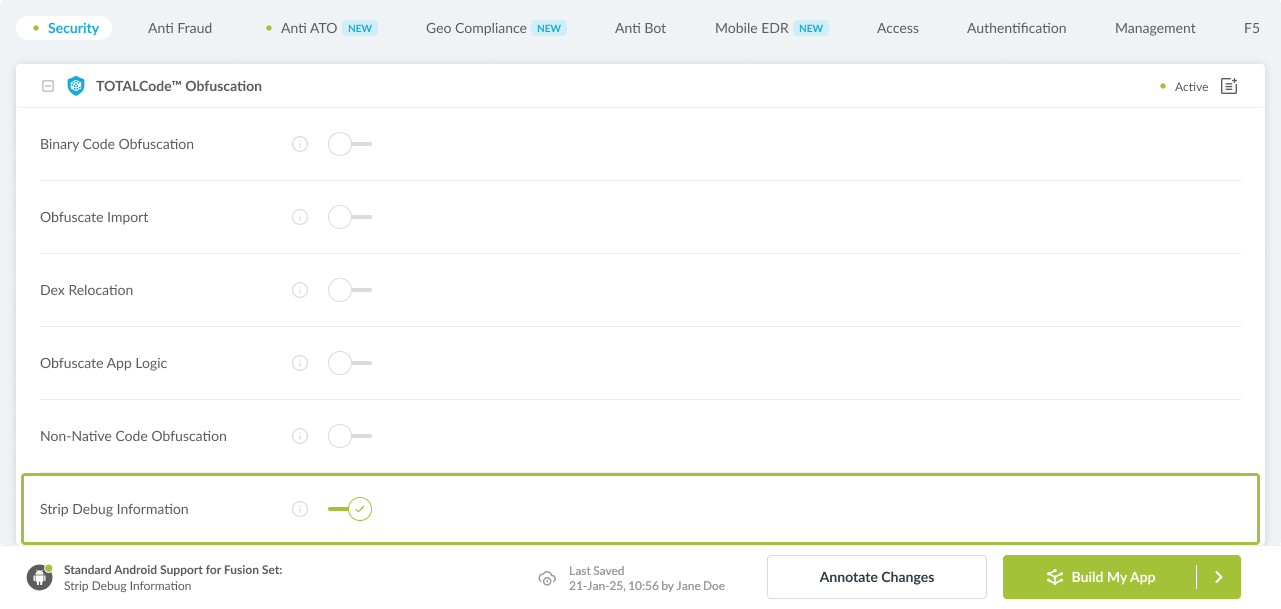

    Figure 3: Strip Debug Information option
    Note: The App Compromise Notification contains an easy to follow default remediation path for the mobile app end user. You can customize this message as required to achieve brand specific support, workflow or other messaging.
  2. When you select the Strip Debug Information you'll notice that your Fusion Set you created in step 2.1.1 now bears the icon of the protection category that contains Strip Debug Information

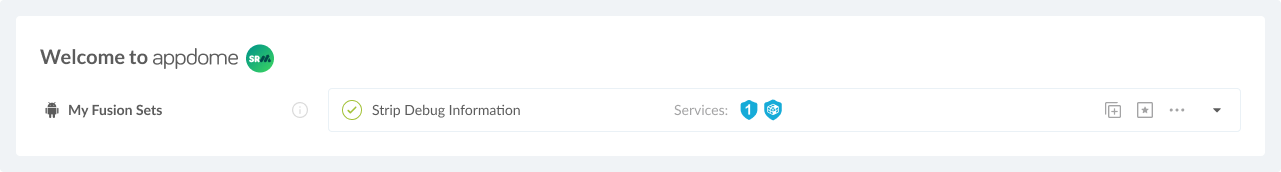

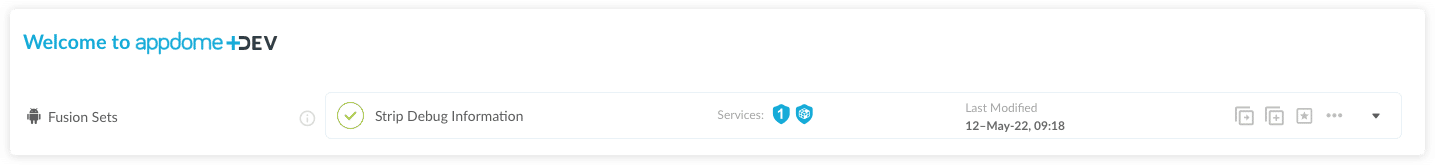

    Figure 4: Fusion Set that displays the newly added Strip Debug Information protection
  3. Extra Configuration with Strip Debug Information:
    Strip Export Names
    Remove the index that associates symbol names with addresses. Note: this feature cannot be used when the application loads its own symbols.
  4. Click Build My App at the bottom of the Build Workflow (shown in Figure 3).
Congratulations! The Strip Debug Information protection is now added to the mobile app
Certify the Strip Debug Information feature in Android Apps

After building Strip Debug Information, Appdome generates a Certified Secure™ certificate to guarantee that the Strip Debug Information protection has been added and is protecting the app. To verify that the Strip Debug Information protection has been added to the mobile app, locate the protection in the Certified Secure™ certificate as shown below:

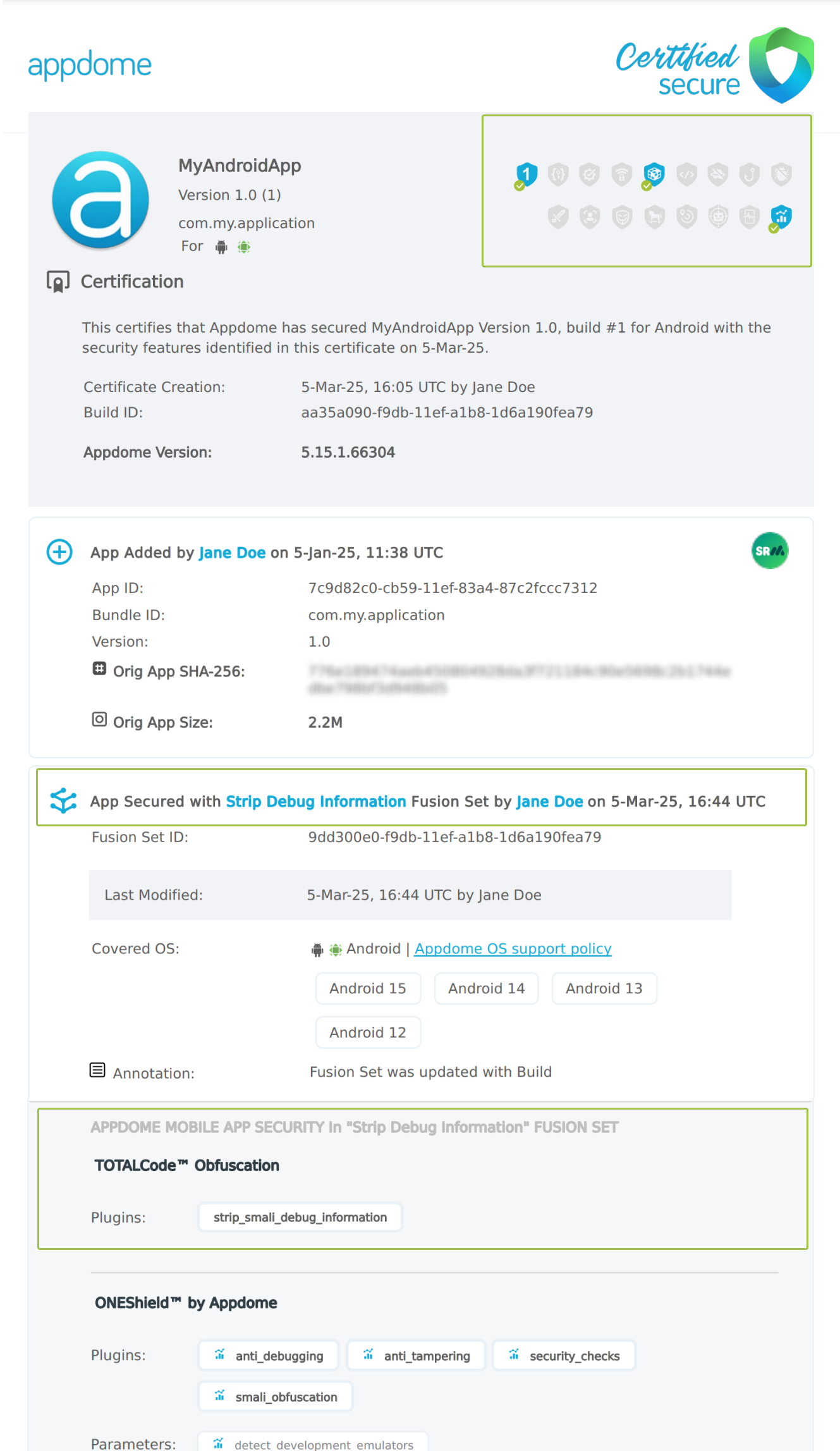

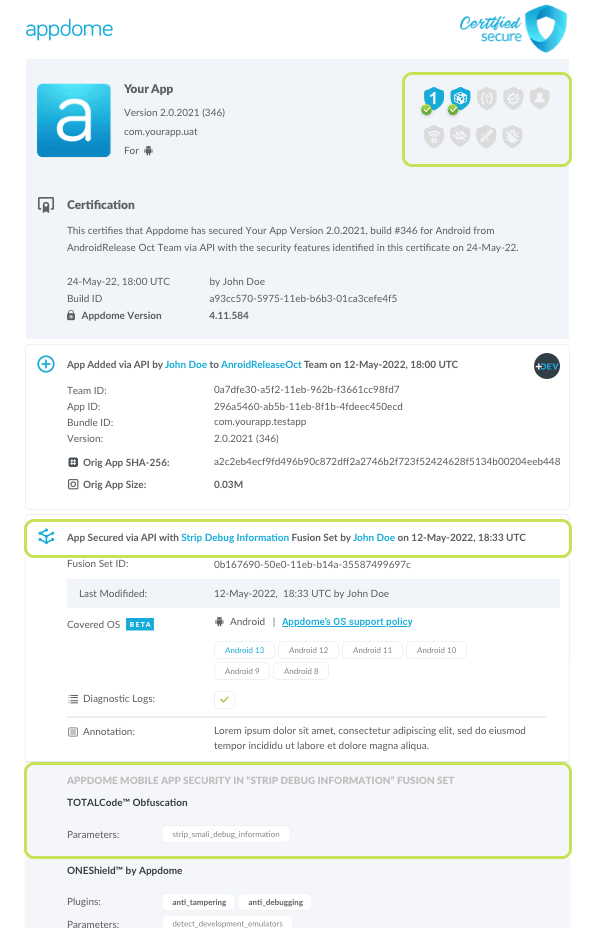

Figure 5: Certified Secure™ certificate

Each Certified Secure™ certificate provides DevOps and DevSecOps organizations the entire workflow summary, audit trail of each build, and proof of protection that Strip Debug Information has been added to each Android app. Certified Secure provides instant and in-line DevSecOps compliance certification that Strip Debug Information and other mobile app security features are in each build of the mobile app

Using Threat-Events™ for Debug Information Intelligence and Control in Android Apps

Appdome Threat-Events™ provides consumable in-app mobile app attack intelligence and defense control when Debug Information is detected. To consume and use Threat-Events™ for Debug Information in Android Apps, use registerReceiver in the Application OnCreate, and the code samples for Threat-Events™ for Debug Information shown below.

The specifications and options for Threat-Events™ for Debug Information are:

Threat-Event™ Elements	Obfuscate Debug Information Method Detail
Appdome Feature Name	Strip Debug Information
Threat-Event Mode
OFF, IN-APP DEFENSE	Appdome detects, defends and notifies user (standard OS dialog) using customizable messaging.
ON, IN-APP DETECTION	Appdome detects the attack or threat and passes the event in a standard format to the app for processing (app chooses how and when to enforce).
ON, IN-APP DEFENSE	Uses Appdome Enforce mode for any attack or threat and passes the event in a standard format to the app for processing (gather intel on attacks and threats without losing any protection).
Certified Secure™ Threat Event Check	x
Visible in ThreatScope™	x
Developer Parameters for Obfuscating Debug Information Threat-Event™
Threat-Event NAME
Threat-Event DATA	reasonData
Threat-Event CODE	reasonCode
Threat-Event REF
Threat-Event SCORE
currentThreatEventScore	Current Threat-Event score
threatEventsScore	Total Threat-events score

Threat-Event Context Keys
message	Message displayed for the user on event
failSafeEnforce	Timed enforcement against the identified threat
externalID	The external ID of the event which can be listened via Threat Events
osVersion	OS version of the current device
deviceModel	Current device model
deviceManufacturer	The manufacturer of the current device
fusedAppToken	The task ID of the Appdome fusion of the currently running app
kernelInfo	Info about the kernel: system name, node name, release, version and machine.
carrierPlmn	PLMN of the device. Only available for Android devices.
deviceID	Current device ID
reasonCode	Reason code of the occurred event
buildDate	Appdome fusion date of the current application
devicePlatform	OS name of the current device
carrierName	Carrier name of the current device. Only available for Android.
updatedOSVersion	Is the OS version up to date
deviceBrand	Brand of the device
deviceBoard	Board of the device
buildUser	Build user
buildHost	Build host
sdkVersion	Sdk version
timeZone	Time zone
deviceFaceDown	Is the device face down
locationLong	Location longitude conditioned by location permission
locationLat	Location latitude conditioned by location permission
locationState	Location state conditioned by location permission
wifiSsid	Wifi SSID
wifiSsidPermissionStatus	Wifi SSID permission status

With Threat-Events™ enabled (turned ON), Android developers can get detailed attack intelligence and granular defense control in Android applications and create amazing user experiences for all mobile end users when Debug Information is detected.

The following is a code sample for native Android apps, which uses all values in the specification above for Strip Debug Information:

Important! Replace all placeholder instances of <Context Key> with the specific name of your threat event context key across all language examples. This is crucial to ensure your code functions correctly with the intended event data. For example, The <Context Key> could be the message, externalID, OS Version, reason code, etc.

                    IntentFilter intentFilter = new IntentFilter();
                    intentFilter.addAction("");
                    BroadcastReceiver threatEventReceiver = new BroadcastReceiver() {
                        @Override
                        public void onReceive(Context context, Intent intent) {
                            String message = intent.getStringExtra("message"); // Message shown to the user
                            String reasonData = intent.getStringExtra("reasonData"); // Threat detection cause
                            String reasonCode = intent.getStringExtra("reasonCode"); // Event reason code

                            // Current threat event score
                            String currentThreatEventScore = intent.getStringExtra("currentThreatEventScore");

                            // Total threat events score
                            String threatEventsScore = intent.getStringExtra("threatEventsScore");

                            // Replace '' with your specific event context key
                            // String variable = intent.getStringExtra("");

                            // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
                        }
                    };

                    if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.TIRAMISU) {
                        registerReceiver(threatEventReceiver, intentFilter, Context.RECEIVER_NOT_EXPORTED);
                    } else {
                        registerReceiver(threatEventReceiver, intentFilter);
                    }

xxxxxxxxxx

IntentFilter intentFilter = new IntentFilter();
intentFilter.addAction("");
BroadcastReceiver threatEventReceiver = new BroadcastReceiver() {
  @Override
  public void onReceive(Context context, Intent intent) {
    String message = intent.getStringExtra("message"); // Message shown to the user
    String reasonData = intent.getStringExtra("reasonData"); // Threat detection cause
    String reasonCode = intent.getStringExtra("reasonCode"); // Event reason code
​
    // Current threat event score
    String currentThreatEventScore = intent.getStringExtra("currentThreatEventScore");
​
    // Total threat events score
    String threatEventsScore = intent.getStringExtra("threatEventsScore");
​
    // Replace '<Context Key>' with your specific event context key
    // String variable = intent.getStringExtra("<Context Key>");
​
    // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
  }
};
​
if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.TIRAMISU) {
  registerReceiver(threatEventReceiver, intentFilter, Context.RECEIVER_NOT_EXPORTED);
} else {
  registerReceiver(threatEventReceiver, intentFilter);
}

                    val intentFilter = IntentFilter()
                    intentFilter.addAction("")
                    val threatEventReceiver = object : BroadcastReceiver() {
                        override fun onReceive(context: Context?, intent: Intent?) {
                            var message = intent?.getStringExtra("message") // Message shown to the user
                            var reasonData = intent?.getStringExtra("reasonData") // Threat detection cause
                            var reasonCode = intent?.getStringExtra("reasonCode") // Event reason code

                            // Current threat event score
                            var currentThreatEventScore = intent?.getStringExtra("currentThreatEventScore")

                            // Total threat events score
                            var threatEventsScore = intent?.getStringExtra("threatEventsScore")

                            // Replace '' with your specific event context key
                            // var variable = intent?.getStringExtra("")

                            // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
                        }
                    }

                    if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.TIRAMISU) {
                        registerReceiver(threatEventReceiver, intentFilter, Context.RECEIVER_NOT_EXPORTED)
                    } else {
                        registerReceiver(threatEventReceiver, intentFilter)
                    }

xxxxxxxxxx

val intentFilter = IntentFilter()
intentFilter.addAction("")
val threatEventReceiver = object : BroadcastReceiver() {
    override fun onReceive(context: Context?, intent: Intent?) {
        var message = intent?.getStringExtra("message") // Message shown to the user
        var reasonData = intent?.getStringExtra("reasonData") // Threat detection cause
        var reasonCode = intent?.getStringExtra("reasonCode") // Event reason code

        // Current threat event score
        var currentThreatEventScore = intent?.getStringExtra("currentThreatEventScore")

        // Total threat events score
        var threatEventsScore = intent?.getStringExtra("threatEventsScore")

        // Replace '<Context Key>' with your specific event context key
        // var variable = intent?.getStringExtra("<Context Key>")
​
        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
    }
}
​
if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.TIRAMISU) {
  registerReceiver(threatEventReceiver, intentFilter, Context.RECEIVER_NOT_EXPORTED)
} else {
  registerReceiver(threatEventReceiver, intentFilter)
}

                const { ADDevEvents } = NativeModules;
                const aDDevEvents = new NativeEventEmitter(ADDevEvents);

                function registerToDevEvent(action, callback) {
                    NativeModules.ADDevEvents.registerForDevEvent(action);
                    aDDevEvents.addListener(action, callback);
                }

                export function registerToAllEvents() {
                    registerToDevEvent(
                        "",
                        (userinfo) => Alert.alert(JSON.stringify(userinfo))

                        var message = userinfo["message"] // Message shown to the user
                        var reasonData = userinfo["reasonData"] // Threat detection cause
                        var reasonCode = userinfo["reasonCode"] // Event reason code

                        // Current threat event score
                        var currentThreatEventScore = userinfo["currentThreatEventScore"]

                        // Total threat events score
                        var threatEventsScore = userinfo["threatEventsScore"]

                        // Replace '' with your specific event context key
                        // var variable = userinfo[""]

                        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
                    );
                }

xxxxxxxxxx

const { ADDevEvents } = NativeModules;
const aDDevEvents = new NativeEventEmitter(ADDevEvents);
​
function registerToDevEvent(action, callback) {
    NativeModules.ADDevEvents.registerForDevEvent(action);
    aDDevEvents.addListener(action, callback);
}
​
export function registerToAllEvents() {
    registerToDevEvent(
        "",
        (userinfo) => Alert.alert(JSON.stringify(userinfo))
​
        var message = userinfo["message"] // Message shown to the user
        var reasonData = userinfo["reasonData"] // Threat detection cause
        var reasonCode = userinfo["reasonCode"] // Event reason code
​
        // Current threat event score
        var currentThreatEventScore = userinfo["currentThreatEventScore"]
​
        // Total threat events score
        var threatEventsScore = userinfo["threatEventsScore"]
​
        // Replace '<Context Key>' with your specific event context key
        // var variable = userinfo["<Context Key>"]
​
        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
    );
}

                RegisterReceiver(new ThreatEventReceiver(), new IntentFilter(""));

                class ThreatEventReceiver : BroadcastReceiver
                {
                    public override void OnReceive(Context context, Intent intent)
                    {
                        String message = intent.GetStringExtra("message"); // Message shown to the user
                        String reasonData = intent.GetStringExtra("reasonData"); // Threat detection cause
                        String reasonCode = intent.GetStringExtra("reasonCode"); // Event reason code

                        // Current threat event score
                        String currentThreatEventScore = intent.GetStringExtra("currentThreatEventScore");

                        // Total threat events score
                        String threatEventsScore = intent.GetStringExtra("threatEventsScore");

                        // Replace '' with your specific event context key
                        // String variable = intent.GetStringExtra("");

                        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
                    }
                }

x

RegisterReceiver(new ThreatEventReceiver(), new IntentFilter(""));

class ThreatEventReceiver : BroadcastReceiver
{
    public override void OnReceive(Context context, Intent intent)
    {
        // Message shown to the user
        String message = intent.GetStringExtra("message");
​
        // Threat detection cause
        String reasonData = intent.GetStringExtra("reasonData");
​
        // Event reason code
        String reasonCode = intent.GetStringExtra("reasonCode");
​
        // Current threat event score
        String currentThreatEventScore = intent.GetStringExtra("currentThreatEventScore");
​
        // Total threat events score
        String threatEventsScore = intent.GetStringExtra("threatEventsScore");
​
        // Replace '<Context Key>' with your specific event context key
        // String variable = intent.GetStringExtra("<Context Key>");
​
        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
    }
}

                NSNotificationCenter.DefaultCenter.AddObserver(
                    (NSString)"", // Threat-Event Identifier
                    delegate (NSNotification notification)
                    {
                        // Message shown to the user
                        var message = notification.UserInfo.ObjectForKey("message");

                        // Threat detection cause
                        var reasonData = notification.UserInfo.ObjectForKey("reasonData");

                        // Event reason code
                        var reasonCode = notification.UserInfo.ObjectForKey("reasonCode");

                        // Current threat event score
                        var currentThreatEventScore = notification.UserInfo.ObjectForKey("currentThreatEventScore");

                        // Total threat events score
                        var threatEventsScore = notification.UserInfo.ObjectForKey("threatEventsScore");

                        // Replace '' with your specific event context key
                        // var variable = notification.UserInfo.ObjectForKey("");

                        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
                    }
                );

x

NSNotificationCenter.DefaultCenter.AddObserver(
    (NSString)"", // Threat-Event Identifier
    delegate (NSNotification notification)
    {
        // Message shown to the user
        var message = notification.UserInfo.ObjectForKey("message");
​
        // Threat detection cause
        var reasonData = notification.UserInfo.ObjectForKey("reasonData");
​
        // Event reason code
        var reasonCode = notification.UserInfo.ObjectForKey("reasonCode");
​
        // Current threat event score
        var currentThreatEventScore = notification.UserInfo.ObjectForKey("currentThreatEventScore");
​
        // Total threat events score
        var threatEventsScore = notification.UserInfo.ObjectForKey("threatEventsScore");
​
        // Replace '<Context Key>' with your specific event context key
        // var variable = notification.UserInfo.ObjectForKey("<Context Keys>");
​
        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
    }
);

                window.broadcaster.addEventListener("", function(userInfo) {
                    var message = userInfo.message // Message shown to the user
                    var reasonData = userInfo.reasonData // Threat detection cause
                    var reasonCode = userInfo.reasonCode // Event reason code

                    // Current threat event score
                    var currentThreatEventScore = userInfo.currentThreatEventScore

                    // Total threat events score
                    var threatEventsScore = userInfo.threatEventsScore

                    // Replace '' with your specific event context key
                    // var variable = userInfo.

                    // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
                });

xxxxxxxxxx

window.broadcaster.addEventListener("", function(userInfo) {
    var message = userInfo.message // Message shown to the user
    var reasonData = userInfo.reasonData // Threat detection cause
    var reasonCode = userInfo.reasonCode // Event reason code
​
    // Current threat event score
    var currentThreatEventScore = userInfo.currentThreatEventScore
​
    // Total threat events score
    var threatEventsScore = userInfo.threatEventsScore
​
    // Replace '<Context Key>' with your specific event context key
    // var variable = userInfo.<Context Keys>
​
    // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
});

                import 'dart:async';
                import 'package:flutter/material.dart';
                import 'package:flutter/services.dart';

                class PlatformChannel extends StatefulWidget {
                    const PlatformChannel({super.key});

                    @override
                    State createState() => _PlatformChannelState();
                }

                class _PlatformChannelState extends State {
                    // Replace with your EventChannel name
                    static const String _eventChannelName = "";
                    static const EventChannel _eventChannel = EventChannel(_eventChannelName);

                    @override
                    void initState() {
                        super.initState();
                        _eventChannel.receiveBroadcastStream().listen(_onEvent, onError: _onError);
                    }

                    void _onEvent(Object? event) {
                        setState(() {
                            // Adapt this section based on your specific event data structure
                            var eventData = event as Map;

                            // Example: Accessing 'externalID' field from the event
                            var externalID = eventData['externalID'];

                            // Customize the rest of the fields based on your event structure
                            String message = eventData['message']; // Message shown to the user
                            String reasonData = eventData['reasonData']; // Threat detection cause
                            String reasonCode = eventData['reasonCode']; // Event reason code

                            // Current threat event score
                            String currentThreatEventScore = eventData['currentThreatEventScore'];

                            // Total threat events score
                            String threatEventsScore = eventData['threatEventsScore'];

                            // Replace '' with your specific event context key
                            // String variable = eventData[''];
                        });
                    }

                    // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
                }

x

import 'dart:async';
import 'package:flutter/material.dart';
import 'package:flutter/services.dart';
​
class PlatformChannel extends StatefulWidget {
    const PlatformChannel({super.key});
​
    @override
    State<PlatformChannel> createState() => _PlatformChannelState();
}
​
class _PlatformChannelState extends State<PlatformChannel> {
    // Replace with your EventChannel name
    static const String _eventChannelName = "";
    static const EventChannel _eventChannel = EventChannel(_eventChannelName);
​
    @override
    void initState() {
        super.initState();
        _eventChannel.receiveBroadcastStream().listen(_onEvent, onError: _onError);
    }
​
    void _onEvent(Object? event) {
        setState(() {
            // Adapt this section based on your specific event data structure
            var eventData = event as Map;
​
            // Example: Accessing 'externalID' field from the event
            var externalID = eventData['externalID'];
​
            // Customize the rest of the fields based on your event structure
            String message = eventData['message']; // Message shown to the user
            String reasonData = eventData['reasonData']; // Threat detection cause
            String reasonCode = eventData['reasonCode']; // Event reason code
​
            // Current threat event score
            String currentThreatEventScore = eventData['currentThreatEventScore'];
​
            // Total threat events score
            String threatEventsScore = eventData['threatEventsScore'];
​
            // Replace '<Context Key>' with your specific event context key
            // String variable = eventData['<Context Keys>'];
        });
    }
​
    // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
}

Using Appdome, there are no development or coding prerequisites to build secured Android Apps by using Strip Debug Information. There is no SDK and no library to code or implement in the app and no gateway to deploy in your network. All protections are built into each app and the resulting app is self-defending and self-protecting.

Releasing and Publishing Mobile Apps with Strip Debug Information

After successfully securing your app by using Appdome, there are several available options to complete your project, depending on your app lifecycle or workflow. These include:

Customizing, Configuring & Branding Secure Mobile Apps
Deploying/Publishing Secure mobile apps to Public or Private app stores
Releasing Secured Android & iOS Apps built on Appdome.

Non-Native Code Obfuscation, Anti-Reversing for Android & iOS Frameworks

iOS SelRef Obfuscation, Anti-Reversing in iOS Apps

iOS Binding Obfuscation, Anti-Reversing in iOS Apps

How Do I Learn More?

If you have any questions, please send them our way at support.appdome.com or via the chat window on the Appdome platform.

Thank you!

Thanks for visiting Appdome! Our mission is to secure every app on the planet by making mobile app security easy. We hope we’re living up to the mission with your project.

How to Obfuscate Debug Information & Prevent Reverse Engineering in Android Apps

What is Debug Information?

Why Obfuscate Debug Information in Android Apps?

Prerequisites for Using Strip Debug Information:

Obfuscate Debug Information on Android apps using Appdome

Upload the Mobile App to Appdome.

Upload an app to Appdome’s Mobile App Security Build System

Build the feature: Strip Debug Information.

Building Strip Debug Information by using Appdome’s DEV-API:

Building the Strip Debug Information feature via Appdome Console

Certify the Strip Debug Information feature in Android Apps

Using Threat-Events™ for Debug Information Intelligence and Control in Android Apps

Related Articles:

How Do I Learn More?

Thank you!

Supercharge the Experience in Mobile App Defense

Better User Experience in Mobile Defense

Shifting Dynamics in Mobile Fraud Prevention: A Call for Developer Responsibility

Eliminating Information Asymmetry in the Attack Chain With GenAI
