This Knowledge Base article describes how to use Appdome’s AI/ML in your CI/CD pipeline to continuously
deliver plugins that Detect De-ODEX Attack in Android apps.
What is an Android De-ODEX Attack?
A De-ODEX attack is a reverse engineering technique where attackers convert ODEX (Optimized Dalvik Executable) files back into DEX (Dalvik Executable) format. This allows them to analyze, modify, and repackage Android apps. Android Runtime (ART), which replaced Dalvik in Android 5.0, improves performance by precompiling code at installation using Ahead-of-Time (AOT) compilation, storing optimized code in ODEX files. Attackers exploit ART or Dalvik Virtual Machine (DVM) modding techniques to extract decrypted DEX files, bypass optimization processes, and manipulate app behavior. Tools like Oat2Dex, Baksmali, and custom ART/DVM modifications enable hackers to remove integrity checks, disable anti-tampering protections, bypass licensing restrictions, and inject malware. Preventing De-ODEX attacks is essential for maintaining app integrity, protecting intellectual property, and preventing unauthorized modding.
How Appdome Detects Android De-ODEX Attacks?
Appdome’s dynamic Detect Android De-ODEX Attack plugin prevents attackers from de-optimizing Android apps and modifying runtime execution. This protection detects any attempts to extract, replace, or modify ODEX files, ART/DVM configurations, or compiled bytecode. It continuously monitors the app’s execution environment for anomalous runtime behavior, blocking unauthorized modifications before they impact security.
Prerequisites for Using Appdome's Detect Android De-ODEX Attack Plugins:
To use Appdome’s mobile app security build system to Detect De-ODEX Attack , you’ll need:
Upload an app via the Appdome Mobile Defense platform GUI or via Appdome’s DEV-API or CI/CD Plugins.
Android Formats: .apk or .aab
Detect Android De-ODEX Attack is compatible with:
Java, JS, C++, C#, Kotlin, Flutter, React Native, Unity, Xamarin, Cordova and other Android apps.
Select the defense: Detect Android De-ODEX Attack.
Create and name the Fusion Set (security template) that will contain the Detect Android De-ODEX Attack feature as shown below:
Figure 1: Fusion Set that will contain the Detect Android De-ODEX Attack feature
Follow the steps in Sections 2.2-2.2.2 of this article to add the Detect Android De-ODEX Attack feature to your Fusion Set via the Appdome Console.
When you enable Detect APK Modding Tool you'll notice that the Fusion Set you created in step 2.1 now bears the icon of the protection category that contains Detect Android De-ODEX Attack.
Figure 2: Fusion Set that displays the newly added Detect Android De-ODEX Attack protection
Note: Annotating the Fusion Set to identify the protection(s) selected is optional only (not mandatory).
Open the Fusion Set Detail Summary by clicking the “...” symbol on the far-right corner of the Fusion Set. Copy
the Fusion Set ID from the Fusion Set Detail Summary (as shown below):
Figure 3: Fusion Set Detail Summary
Follow the instructions below to use the Fusion Set ID inside any standard mobile DevOps or CI/CD toolkit like Bitrise, Jenkins, Travis, Team City, Circle CI or other system:
Add the Detect Android De-ODEX Attack feature to your security template.
Navigate to Build > Anti Fraud tab > Mobile Cheat Prevention section in the Appdome Console.
Like all other options in ONEShield™, Detect Android De-ODEX Attack is turned on by default, as shown below:

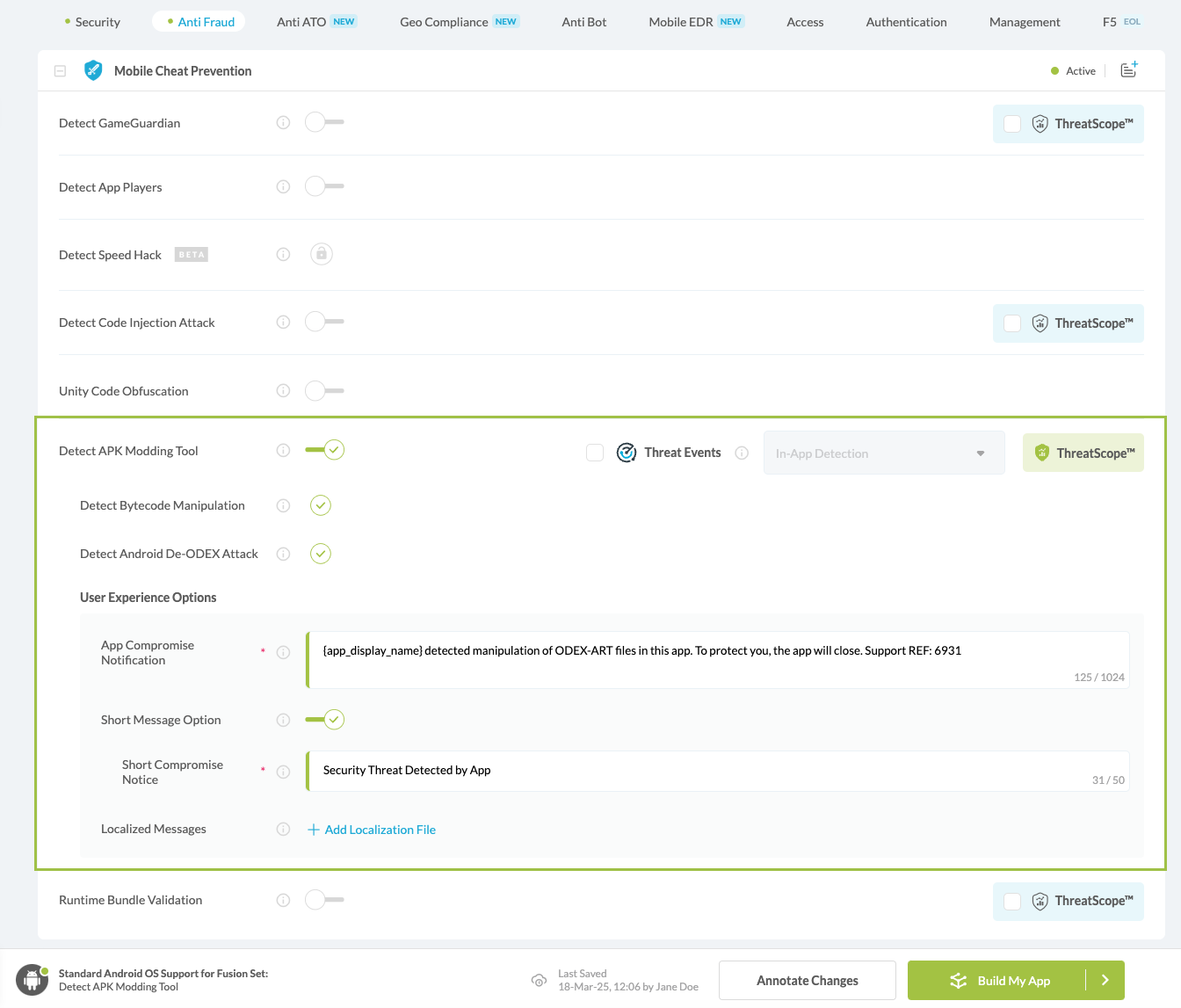

Figure 4: Selecting Detect Android De-ODEX Attack
Note: The App Compromise Notification contains an easy to follow default remediation path for the mobile app end user. You can customize this message as required to achieve brand specific support, workflow or other messaging.
Toggle On Detect APK Modding Tool > Detect Android De-ODEX Attack.
Note: The checkmark feature Detect Android De-ODEX Attack is enabled by default, as shown below.
Figure 4: Selecting Detect De-ODEX Attack
Note: The Appdome Platform displays the Mobile Operation Systems supported by each defense in real-time.
For more details, see our OS Support Policy KB.
Configure the User Experience Options for Detect Android De-ODEX Attack:
With Threat-Events™ OFF, Appdome provides several user experience options for mobile brands and developers.
App Compromise Notification: Customize the pop-up or toast Appdome uses to notify the user when a threat is present while using the protected mobile app.
Short message Option. This is available for mobile devices that allow a banner notification for security events.
Localized Message Option. Allows Appdome users to support global languages in security notifications.
Figure 5: Default User Experience Options for Appdome’s De-ODEX Attack
Detect Android De-ODEX Attack Threat Code™. Appdome uses AI/ML to generate a unique code each time
Detect Android De-ODEX Attack is triggered by an active threat on the mobile device.
Use the code in Appdome Threat Resolution Center™ to help end users identify, find and resolve active threats on the personal mobile devices.
Initiate the build command either by clicking Build My App at the bottom of the Build Workflow (shown in Figure 4)
or via your CI/CD as described in Section 2.1.4.
Congratulations! The Detect Android De-ODEX Attack protection is now added to the mobile app
Certify the Detect Android De-ODEX Attack feature in Android Apps
After building Detect Android De-ODEX Attack, Appdome generates a Certified Secure™ certificate to guarantee that the Detect Android De-ODEX Attack protection has been added and is protecting the app. To verify that the Detect Android De-ODEX Attack protection has been added to the mobile app, locate the protection in the Certified Secure™ certificate as shown below:

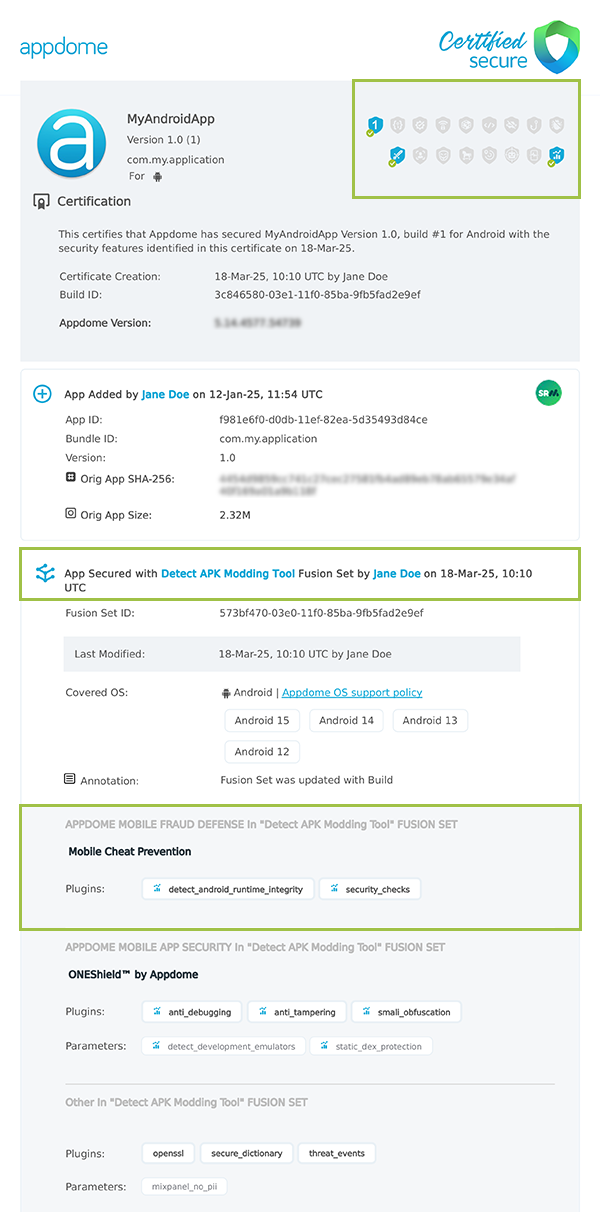

Figure 6: Certified Secure™ certificate
Each Certified Secure™ certificate provides DevOps and DevSecOps organizations the entire workflow summary, audit trail of each build, and proof of protection that Detect Android De-ODEX Attack has been added to each Android app. Certified Secure provides instant and in-line DevSecOps compliance certification that Detect Android De-ODEX Attack and other mobile app security features are in each build of the mobile app.
Using Threat-Events™ for De-ODEX Attack Intelligence and Control in Android Apps
Appdome Threat-Events™ provides consumable in-app mobile app attack intelligence and defense control when De-ODEX Attack is detected. To consume and use Threat-Events™ for
De-ODEX Attack in Android Apps, use registerReceiver in the Application OnCreate, and the code samples for Threat-Events™ for De-ODEX Attack shown below.
The specifications and options for Threat-Events™ for De-ODEX Attack are:
Threat-Event™ Elements
Detect De-ODEX Attack Method Detail
Appdome Feature Name
Detect Android De-ODEX Attack
Threat-Event Mode
OFF, IN-APP DEFENSE
Appdome detects, defends and notifies user (standard OS dialog) using customizable messaging.
ON, IN-APP DETECTION
Appdome detects the attack or threat and passes the event in a standard format to the app for processing (app chooses how and when to enforce).
ON, IN-APP DEFENSE
Uses Appdome Enforce mode for any attack or threat and passes the event in a standard format to the app for processing (gather intel on attacks and threats without losing any protection).
Certified Secure™ Threat Event Check
Visible in ThreatScope™
Developer Parameters for Detecting De-ODEX Attack Threat-Event™
Threat-Event NAME
test
Threat-Event DATA
reasonData
Threat-Event CODE
reasonCode
Threat-Event REF
test
Threat-Event SCORE
currentThreatEventScore
Current Threat-Event score
threatEventsScore
Total Threat-events score
Threat-Event Context Keys
message
Message displayed for the user on event
failSafeEnforce
Timed enforcement against the identified threat
externalID
The external ID of the event which can be listened via Threat Events
osVersion
OS version of the current device
deviceModel
Current device model
deviceManufacturer
The manufacturer of the current device
fusedAppToken
The task ID of the Appdome fusion of the currently running app
kernelInfo
Info about the kernel: system name, node name, release, version and machine.
carrierPlmn
PLMN of the device. Only available for Android devices.
deviceID
Current device ID
reasonCode
Reason code of the occurred event
buildDate
Appdome fusion date of the current application
devicePlatform
OS name of the current device
carrierName
Carrier name of the current device. Only available for Android.
updatedOSVersion
Is the OS version up to date
deviceBrand
Brand of the device
deviceBoard
Board of the device
buildUser
Build user
buildHost
Build host
sdkVersion
Sdk version
timeZone
Time zone
deviceFaceDown
Is the device face down
locationLong
Location longitude conditioned by location permission
locationLat
Location latitude conditioned by location permission
locationState
Location state conditioned by location permission
wifiSsid
Wifi SSID
wifiSsidPermissionStatus
Wifi SSID permission status
threatCode
The last six characters of the threat code specify the OS, allowing the Threat Resolution Center to address the attack on the affected device.
With Threat-Events™ enabled (turned ON), Android developers can get detailed attack intelligence and granular defense control in Android applications and create amazing user experiences for all mobile end users when De-ODEX Attack is detected.
The following is a code sample for native Android apps, which uses all values in the specification above for Detect Android De-ODEX Attack:
Important! Replace all placeholder instances of <Context Key> with the specific name of your threat event context key across all language examples. This is crucial to ensure your code functions correctly with the intended event data.
For example, The <Context Key> could be the message, externalID, OS Version, reason code, etc.
IntentFilter intentFilter = new IntentFilter();
intentFilter.addAction("test");
BroadcastReceiver threatEventReceiver = new BroadcastReceiver() {
@Override
public void onReceive(Context context, Intent intent) {
String message = intent.getStringExtra("message"); // Message shown to the user
String reasonData = intent.getStringExtra("reasonData"); // Threat detection cause
String reasonCode = intent.getStringExtra("reasonCode"); // Event reason code
// Current threat event score
String currentThreatEventScore = intent.getStringExtra("currentThreatEventScore");
// Total threat events score
String threatEventsScore = intent.getStringExtra("threatEventsScore");
// Replace '' with your specific event context key
// String variable = intent.getStringExtra("");
// Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
}
};
if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.TIRAMISU) {
registerReceiver(threatEventReceiver, intentFilter, Context.RECEIVER_NOT_EXPORTED);
} else {
registerReceiver(threatEventReceiver, intentFilter);
}
val intentFilter = IntentFilter()
intentFilter.addAction("test")
val threatEventReceiver = object : BroadcastReceiver() {
override fun onReceive(context: Context?, intent: Intent?) {
var message = intent?.getStringExtra("message") // Message shown to the user
var reasonData = intent?.getStringExtra("reasonData") // Threat detection cause
var reasonCode = intent?.getStringExtra("reasonCode") // Event reason code
// Current threat event score
var currentThreatEventScore = intent?.getStringExtra("currentThreatEventScore")
// Total threat events score
var threatEventsScore = intent?.getStringExtra("threatEventsScore")
// Replace '' with your specific event context key
// var variable = intent?.getStringExtra("")
// Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
}
}
if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.TIRAMISU) {
registerReceiver(threatEventReceiver, intentFilter, Context.RECEIVER_NOT_EXPORTED)
} else {
registerReceiver(threatEventReceiver, intentFilter)
}
const { ADDevEvents } = NativeModules;
const aDDevEvents = new NativeEventEmitter(ADDevEvents);
function registerToDevEvent(action, callback) {
NativeModules.ADDevEvents.registerForDevEvent(action);
aDDevEvents.addListener(action, callback);
}
export function registerToAllEvents() {
registerToDevEvent(
"test",
(userinfo) => Alert.alert(JSON.stringify(userinfo))
var message = userinfo["message"] // Message shown to the user
var reasonData = userinfo["reasonData"] // Threat detection cause
var reasonCode = userinfo["reasonCode"] // Event reason code
// Current threat event score
var currentThreatEventScore = userinfo["currentThreatEventScore"]
// Total threat events score
var threatEventsScore = userinfo["threatEventsScore"]
// Replace '' with your specific event context key
// var variable = userinfo[""]
// Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
);
}
// Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
26
}
27
}
NSNotificationCenter.DefaultCenter.AddObserver(
(NSString)"test", // Threat-Event Identifier
delegate (NSNotification notification)
{
// Message shown to the user
var message = notification.UserInfo.ObjectForKey("message");
// Threat detection cause
var reasonData = notification.UserInfo.ObjectForKey("reasonData");
// Event reason code
var reasonCode = notification.UserInfo.ObjectForKey("reasonCode");
// Current threat event score
var currentThreatEventScore = notification.UserInfo.ObjectForKey("currentThreatEventScore");
// Total threat events score
var threatEventsScore = notification.UserInfo.ObjectForKey("threatEventsScore");
// Replace '' with your specific event context key
// var variable = notification.UserInfo.ObjectForKey("");
// Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
}
);
// Replace '<Context Key>' with your specific event context key
21
// var variable = notification.UserInfo.ObjectForKey("<Context Keys>");
22
23
// Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
24
}
25
);
window.broadcaster.addEventListener("test", function(userInfo) {
var message = userInfo.message // Message shown to the user
var reasonData = userInfo.reasonData // Threat detection cause
var reasonCode = userInfo.reasonCode // Event reason code
// Current threat event score
var currentThreatEventScore = userInfo.currentThreatEventScore
// Total threat events score
var threatEventsScore = userInfo.threatEventsScore
// Replace '' with your specific event context key
// var variable = userInfo.
// Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
});
// Replace '<Context Key>' with your specific event context key
13
// var variable = userInfo.<Context Keys>
14
15
// Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
16
});
import 'dart:async';
import 'package:flutter/material.dart';
import 'package:flutter/services.dart';
class PlatformChannel extends StatefulWidget {
const PlatformChannel({super.key});
@override
State createState() => _PlatformChannelState();
}
class _PlatformChannelState extends State {
// Replace with your EventChannel name
static const String _eventChannelName = "test";
static const EventChannel _eventChannel = EventChannel(_eventChannelName);
@override
void initState() {
super.initState();
_eventChannel.receiveBroadcastStream().listen(_onEvent, onError: _onError);
}
void _onEvent(Object? event) {
setState(() {
// Adapt this section based on your specific event data structure
var eventData = event as Map;
// Example: Accessing 'externalID' field from the event
var externalID = eventData['externalID'];
// Customize the rest of the fields based on your event structure
String message = eventData['message']; // Message shown to the user
String reasonData = eventData['reasonData']; // Threat detection cause
String reasonCode = eventData['reasonCode']; // Event reason code
// Current threat event score
String currentThreatEventScore = eventData['currentThreatEventScore'];
// Total threat events score
String threatEventsScore = eventData['threatEventsScore'];
// Replace '' with your specific event context key
// String variable = eventData[''];
});
}
// Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
}
// Replace '<Context Key>' with your specific event context key
43
// String variable = eventData['<Context Keys>'];
44
});
45
}
46
47
// Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
48
}
Using Appdome, there are no development or coding prerequisites to build secured Android Apps by using Detect Android De-ODEX Attack. There is no SDK and no library to code or implement in the app and no gateway to deploy in your network. All protections are built into each app and the resulting app is self-defending and self-protecting.
Releasing and Publishing Mobile Apps with Detect Android De-ODEX Attack
After successfully securing your app by using Appdome, there are several available options to complete your project, depending on your app lifecycle or workflow. These include:
If you have any questions, please send them our way at support.appdome.com or via the chat window on the Appdome platform.
Thank you!
Thanks for visiting Appdome! Our mission is to secure every app on the planet by making mobile app security easy. We hope we’re living up to the mission with your project.
Want a Demo?
Mobile App Modding Detection
TomWe're here to help
We'll get back to you in 24 hours to schedule your demo.
