How to Block Remote Desktop Exploits in iOS Apps

Last updated March 13, 2024 by Appdome

Learn to Block Remote Desktop Control in iOS apps, in mobile CI/CD with a Data-Driven DevSecOps™ build system.

What is Remote Desktop Control?

Remote access and remote control computer software programs are used for the remote support and troubleshooting of computers, apps, and other devices. Remote desktop apps, such as TeamViewer and AnyDesk, rely on Remote Desktop Protocol/Services (RDP/RDS) that can be compromised by attackers based on the wide knowledge of exploits and vulnerabilities. Attackers then use their ability to remotely control the device, coupled with the granted higher level of administrative privileges, to perform malicious acts such as injecting or intercepting key events and modifying the user’s input.

Why Block Remote Desktop Control in iOS Apps?

Remote Desktop Exploits and vulnerabilities such as the ones used by Team Viewer and AnyDesk allow attackers to compromise end-user privacy, steal data, harvest user credentials, steal sensitive transaction data, and/or conduct account takeovers of mobile applications. Appdome’s Anti Remote Desktop Control detects 3rd party applications that attempt to remotely control your protected application as well as the ability to block active accessibility services that leverage on-screen actions, such as remote desktop control applications.

For instructions on testing Anti Remote Desktop Control, see the following articles:

Prerequisites for Using Anti Remote Desktop Control:

To use Appdome’s mobile app security build system to Block Remote Desktop Control , you’ll need:

Appdome account (create a free Appdome account here)
A license for Anti Remote Desktop Control
Mobile App (.ipa for iOS)
Signing Credentials (see Signing Secure Android apps and Signing Secure iOS apps)

Block Remote Desktop Control on iOS apps using Appdome

On Appdome, follow these 3 simple steps to create self-defending iOS Apps that Block Remote Desktop Control without an SDK or gateway:

Upload the Mobile App to Appdome.
1. Upload an app to Appdome’s Mobile App Security Build System
2. Upload Method: Appdome Console or DEV-API
3. iOS Formats: .ipa
4. Anti Remote Desktop Control Compatible With: Obj-C, Java, Swift, Flutter, React Native, Unity, Xamarin, Cordova and more
Build the feature: Anti Remote Desktop Control.
1. Building Anti Remote Desktop Control by using Appdome’s DEV-API:

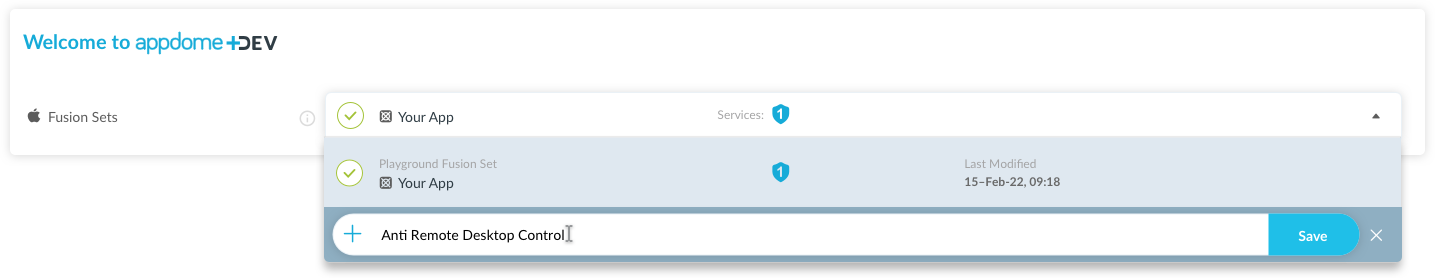

  1. Create and name the Fusion Set (security template) that will contain the Anti Remote Desktop Control feature as shown below:
  2. Follow the steps in Sections 2.2.1-2.2.2 of this article, Building the Anti Remote Desktop Control feature via Appdome Console, to add the Anti Remote Desktop Control feature to this Fusion Set.
  3. Open the Fusion Set Detail Summary by clicking the “...” symbol on the far-right corner of the Fusion Set. Copy the Fusion Set ID from the Fusion Set Detail Summary (as shown below):

    Figure 2: Fusion Set Detail Summary
    Note: Annotating the Fusion Set to identify the protection(s) selected is optional only (not mandatory).
  4. Follow the instructions below to use the Fusion Set ID inside any standard mobile DevOps or CI/CD toolkit like Bitrise, App Center, Jenkins, Travis, Team City, Circle CI or other system:

    Build an API for the app – for instructions, see the tasks under Appdome API Reference Guide

    Look for sample APIs in Appdome’s GitHub Repository
2. Building the Anti Remote Desktop Control feature via Appdome Console

  To build the Anti Remote Desktop Control protection by using Appdome Console, follow the instructions below.
  1. Where: Inside the Appdome Console, go to Build > Anti Fraud Tab > Social Engineering Prevention section.
    Like all other options in ONEShield™, Anti Remote Desktop Control is turned on by default, as shown below:

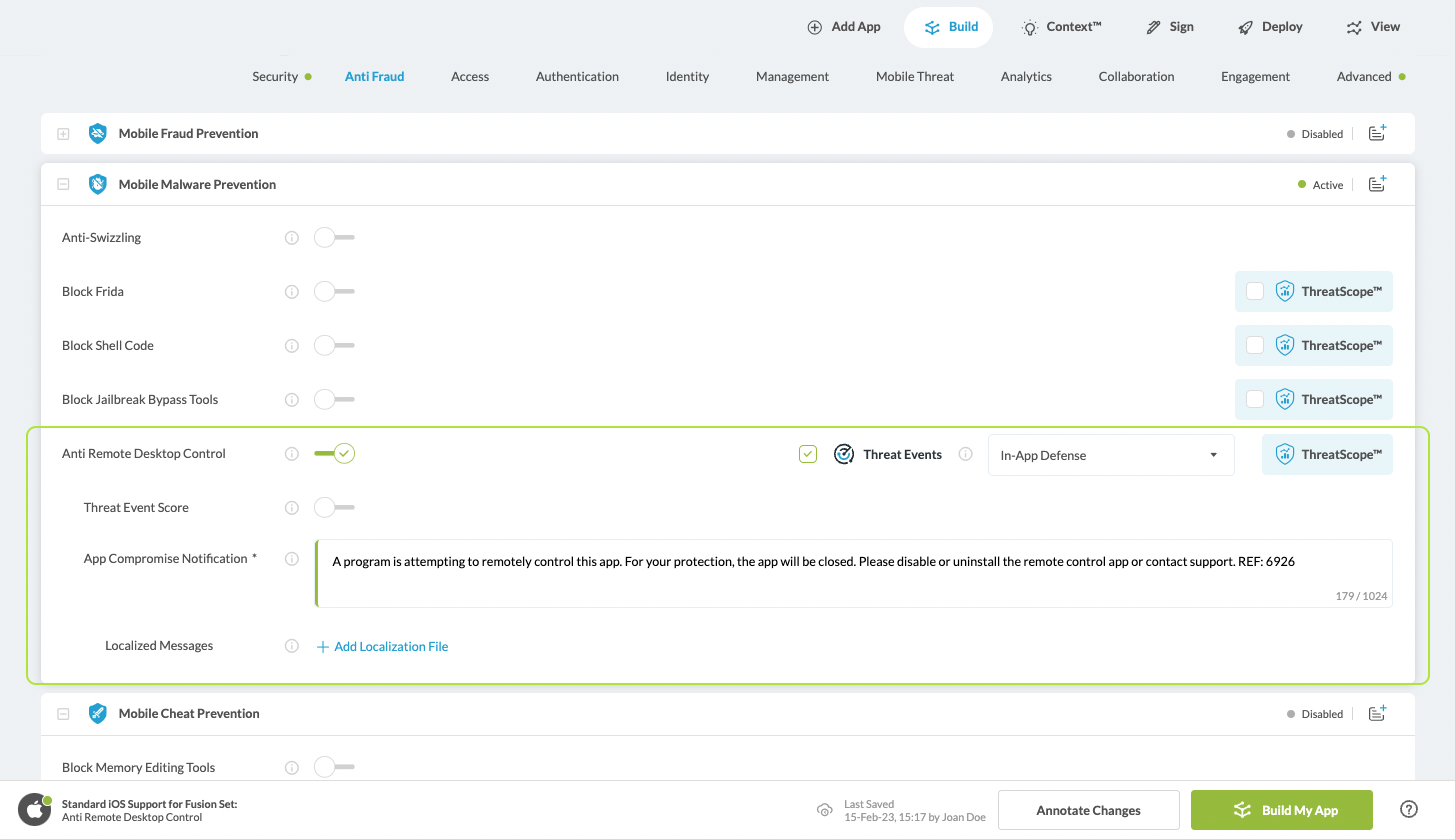

    Figure 3: Anti Remote Desktop Control option
    Note: The App Compromise Notification contains an easy to follow default remediation path for the mobile app end user. You can customize this message as required to achieve brand specific support, workflow or other messaging.
  2. When you select the Anti Remote Desktop Control you'll notice that your Fusion Set you created in step 2.1.1 now bears the icon of the protection category that contains Anti Remote Desktop Control

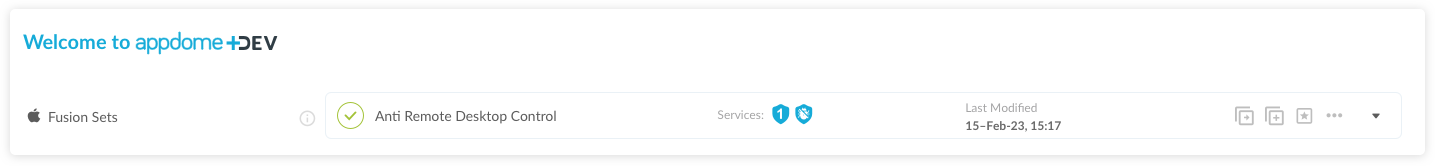

    Figure 4: Fusion Set that displays the newly added Anti Remote Desktop Control protection
  3. Select the Threat-Event™ in-app mobile Threat Defense and Intelligence policy for Anti Remote Desktop Control:

    Threat-Events™ OFF > In-App Defense
    If the Threat-Events™ setting is cleared (not selected). Appdome will detect and defend the user and app by enforcing Block Remote Desktop Control.

    Threat-Events™ ON > In-App Detection
    When this setting is used, Appdome detects Team Viewer & Remote Desktop Exploits and passes Appdome’s Threat-Event™ attack intelligence to the app’s business logic for processing, enforcement, and user notification. For more information on consuming and using Appdome Threat-Events™ in the app, see section Using Threat-Events™ for Anti Remote Desktop Control Intelligence and Control in Mobile Apps.

    Threat-Events™ ON > In-App Defense
    When this setting is used, Appdome detects and defends against Remote Desktop Control (same as Appdome Enforce) and passes Appdome’s Threat-Event™ attack intelligence the app’s business logic for processing. For more information on consuming and using Appdome Threat-Events™ in the app, see section Using Threat-Events™ for Anti Remote Desktop Control Intelligence and Control in Mobile Apps.
  4. Click Build My App at the bottom of the Build Workflow (shown in Figure 3).
Congratulations! The Anti Remote Desktop Control protection is now added to the mobile app
Certify the Anti Remote Desktop Control feature in iOS Apps

After building Anti Remote Desktop Control, Appdome generates a Certified Secure™ certificate to guarantee that the Anti Remote Desktop Control protection has been added and is protecting the app. To verify that the Anti Remote Desktop Control protection has been added to the mobile app, locate the protection in the Certified Secure™ certificate as shown below:

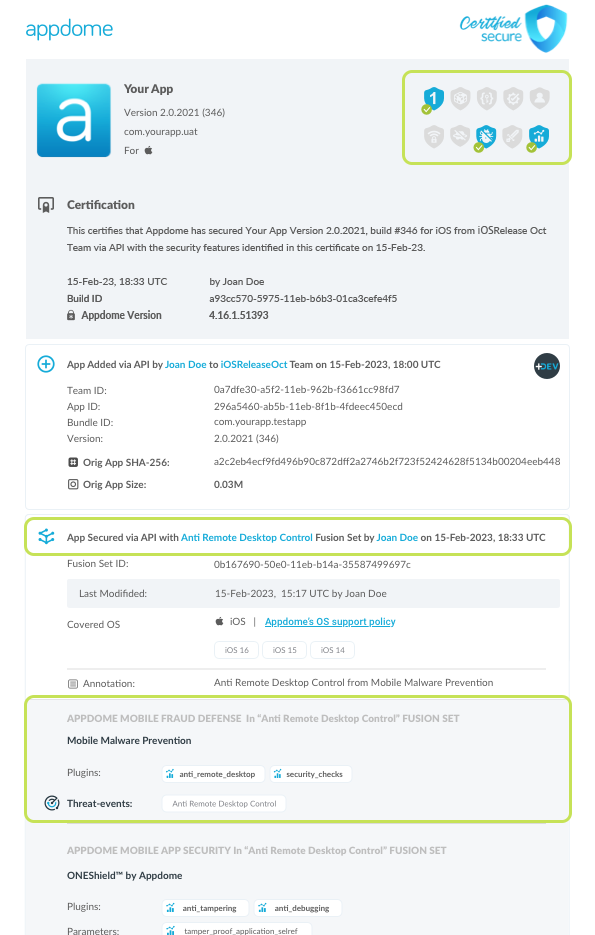

Figure 5: Certified Secure™ certificate

Each Certified Secure™ certificate provides DevOps and DevSecOps organizations the entire workflow summary, audit trail of each build, and proof of protection that Anti Remote Desktop Control has been added to each iOS app. Certified Secure provides instant and in-line DevSecOps compliance certification that Anti Remote Desktop Control and other mobile app security features are in each build of the mobile app

Using Threat-Events™ for Remote Desktop Control Intelligence and Control in iOS Apps

Appdome Threat-Events™ provides consumable in-app mobile app attack intelligence and defense control when Remote Desktop Control is detected. To consume and use Threat-Events™ for Remote Desktop Control in iOS Apps, use AddObserverForName in Notification Center, and the code samples for Threat-Events™ for Remote Desktop Control shown below.

The specifications and options for Threat-Events™ for Remote Desktop Control are:

Threat-Event™ Elements	Block Remote Desktop Control Method Detail
Appdome Feature Name	Anti Remote Desktop Control
Threat-Event Mode
OFF, IN-APP DEFENSE	Appdome detects, defends and notifies user (standard OS dialog) using customizable messaging.
ON, IN-APP DETECTION	Appdome detects the attack or threat and passes the event in a standard format to the app for processing (app chooses how and when to enforce).
ON, IN-APP DEFENSE	Uses Appdome Enforce mode for any attack or threat and passes the event in a standard format to the app for processing (gather intel on attacks and threats without losing any protection).
Certified Secure™ Threat Event Check
Visible in ThreatScope™
Developer Parameters for Blocking Remote Desktop Control Threat-Event™
Threat-Event NAME	IlegalDisplayEvent
Threat-Event DATA	reasonData
Threat-Event CODE	reasonCode
Threat-Event REF	6926
Threat-Event SCORE
Remote desktop application	packageName
currentThreatEventScore	Current Threat-Event score
threatEventsScore	Total Threat-events score

Threat-Event Context Keys
message	Message displayed for the user on event
failSafeEnforce	Timed enforcement against the identified threat
externalID	The external ID of the event which can be listened via Threat Events
osVersion	OS version of the current device
deviceModel	Current device model
deviceManufacturer	The manufacturer of the current device
fusedAppToken	The task ID of the Appdome fusion of the currently running app
kernelInfo	Info about the kernel: system name, node name, release, version and machine.
deviceID	Current device ID
reasonCode	Reason code of the occurred event
buildDate	Appdome fusion date of the current application
devicePlatform	OS name of the current device
updatedOSVersion	Is the OS version up to date
timeZone	Time zone
deviceFaceDown	Is the device face down
locationLong	Location longitude conditioned by location permission
locationLat	Location latitude conditioned by location permission
locationState	Location state conditioned by location permission
wifiSsid	Wifi SSID
wifiSsidPermissionStatus	Wifi SSID permission status

With Threat-Events™ enabled (turned ON), iOS developers can get detailed attack intelligence and granular defense control in iOS applications and create amazing user experiences for all mobile end users when Remote Desktop Control is detected.

The following is a code sample for native iOS apps, which uses all values in the specification above for Anti Remote Desktop Control:

Important! Replace all placeholder instances of <Context Key> with the specific name of your threat event context key across all language examples. This is crucial to ensure your code functions correctly with the intended event data. For example, The <Context Key> could be the message, externalID, OS Version, reason code, etc.

                    let center = NotificationCenter.default
                    center.addObserver(forName: Notification.Name("IlegalDisplayEvent"), object: nil, queue: nil) { (note) in
                        guard let usrInf = note.userInfo else {
                            return
                        }

                        let message = usrInf["message"]; // Message shown to the user
                        let reasonData = usrInf["reasonData"]; // Threat detection cause
                        let reasonCode = usrInf["reasonCode"]; // Event reason code

                        // Current threat event score
                        let currentThreatEventScore = usrInf["currentThreatEventScore"];

                        // Total threat events score
                        let threatEventsScore = usrInf["threatEventsScore"];

                        // Replace '' with your specific event context key
                        // let variable = usrInf[""];

                        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
                    }

x

let center = NotificationCenter.default
center.addObserver(forName: Notification.Name("IlegalDisplayEvent"), object: nil, queue: nil) { (note) in
    guard let usrInf = note.userInfo else {
        return
    }
​
    let message = usrInf["message"]; // Message shown to the user
    let reasonData = usrInf["reasonData"]; // Threat detection cause
    let reasonCode = usrInf["reasonCode"]; // Event reason code
​
    // Current threat event score
    let currentThreatEventScore = usrInf["currentThreatEventScore"];
​
    // Total threat events score
    let threatEventsScore = usrInf["threatEventsScore"];
​
    // Replace '<Context Key>' with your specific event context key
    // let variable = usrInf["<Context Key>"];
​
    // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
}

                    [[NSNotificationCenter defaultCenter] addObserverForName: @"IlegalDisplayEvent" object:nil queue:nil usingBlock:^(NSNotification *org_note) {
                        __block NSNotification *note = org_note;
                        dispatch_async(dispatch_get_main_queue(), ^(void) {
                            // Message shown to the user
                            NSString *message = [[note userInfo] objectForKey:@"message"];

                            // Threat detection cause
                            NSString *reasonData = [[note userInfo] objectForKey:@"reasonData"];

                            // Event reason code
                            NSString *reasonCode = [[note userInfo] objectForKey:@"reasonCode"];

                            // Current threat event score
                            NSString *currentThreatEventScore = [[note userInfo] objectForKey:@"currentThreatEventScore"];

                            // Total threat events score
                            NSString *threatEventsScore = [[note userInfo] objectForKey:@"threatEventsScore"];

                            // Replace '' with your specific event context key
                            // NSString *variable = [[note userInfo] objectForKey:@""];

                            // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
                        });
                    }];

xxxxxxxxxx

[[NSNotificationCenter defaultCenter] addObserverForName: @"IlegalDisplayEvent" object:nil queue:nil usingBlock:^(NSNotification *org_note) {
        __block NSNotification *note = org_note;
        dispatch_async(dispatch_get_main_queue(), ^(void) {

        // Message shown to the user
        NSString *message = [[note userInfo] objectForKey:@"message"];

        // Threat detection cause
        NSString *reasonData = [[note userInfo] objectForKey:@"reasonData"];

        // Event reason code
        NSString *reasonCode = [[note userInfo] objectForKey:@"reasonCode"];
​
        // Current threat event score
        NSString *currentThreatEventScore = [[note userInfo]        objectForKey:@"currentThreatEventScore"];
​
        // Total threat events score
        NSString *threatEventsScore = [[note userInfo] objectForKey:@"threatEventsScore"];
​
        // Replace '<Context Key>' with your specific event context key
        // NSString *variable = [[note userInfo] objectForKey:@"<Context Key>"];
​
        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
    });
}];

                const { ADDevEvents } = NativeModules;
                const aDDevEvents = new NativeEventEmitter(ADDevEvents);

                function registerToDevEvent(action, callback) {
                    NativeModules.ADDevEvents.registerForDevEvent(action);
                    aDDevEvents.addListener(action, callback);
                }

                export function registerToAllEvents() {
                    registerToDevEvent(
                        "IlegalDisplayEvent",
                        (userinfo) => Alert.alert(JSON.stringify(userinfo))

                        var message = userinfo["message"] // Message shown to the user
                        var reasonData = userinfo["reasonData"] // Threat detection cause
                        var reasonCode = userinfo["reasonCode"] // Event reason code

                        // Current threat event score
                        var currentThreatEventScore = userinfo["currentThreatEventScore"]

                        // Total threat events score
                        var threatEventsScore = userinfo["threatEventsScore"]

                        // Replace '' with your specific event context key
                        // var variable = userinfo[""]

                        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
                    );
                }

xxxxxxxxxx

const { ADDevEvents } = NativeModules;
const aDDevEvents = new NativeEventEmitter(ADDevEvents);
​
function registerToDevEvent(action, callback) {
    NativeModules.ADDevEvents.registerForDevEvent(action);
    aDDevEvents.addListener(action, callback);
}
​
export function registerToAllEvents() {
    registerToDevEvent(
        "IlegalDisplayEvent",
        (userinfo) => Alert.alert(JSON.stringify(userinfo))
​
        var message = userinfo["message"] // Message shown to the user
        var reasonData = userinfo["reasonData"] // Threat detection cause
        var reasonCode = userinfo["reasonCode"] // Event reason code
​
        // Current threat event score
        var currentThreatEventScore = userinfo["currentThreatEventScore"]
​
        // Total threat events score
        var threatEventsScore = userinfo["threatEventsScore"]
​
        // Replace '<Context Key>' with your specific event context key
        // var variable = userinfo["<Context Key>"]
​
        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
    );
}

                RegisterReceiver(new ThreatEventReceiver(), new IntentFilter("IlegalDisplayEvent"));

                class ThreatEventReceiver : BroadcastReceiver
                {
                    public override void OnReceive(Context context, Intent intent)
                    {
                        String message = intent.GetStringExtra("message"); // Message shown to the user
                        String reasonData = intent.GetStringExtra("reasonData"); // Threat detection cause
                        String reasonCode = intent.GetStringExtra("reasonCode"); // Event reason code

                        // Current threat event score
                        String currentThreatEventScore = intent.GetStringExtra("currentThreatEventScore");

                        // Total threat events score
                        String threatEventsScore = intent.GetStringExtra("threatEventsScore");

                        // Replace '' with your specific event context key
                        // String variable = intent.GetStringExtra("");

                        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
                    }
                }

x

RegisterReceiver(new ThreatEventReceiver(), new IntentFilter("IlegalDisplayEvent"));

class ThreatEventReceiver : BroadcastReceiver
{
    public override void OnReceive(Context context, Intent intent)
    {
        // Message shown to the user
        String message = intent.GetStringExtra("message");
​
        // Threat detection cause
        String reasonData = intent.GetStringExtra("reasonData");
​
        // Event reason code
        String reasonCode = intent.GetStringExtra("reasonCode");
​
        // Current threat event score
        String currentThreatEventScore = intent.GetStringExtra("currentThreatEventScore");
​
        // Total threat events score
        String threatEventsScore = intent.GetStringExtra("threatEventsScore");
​
        // Replace '<Context Key>' with your specific event context key
        // String variable = intent.GetStringExtra("<Context Key>");
​
        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
    }
}

                NSNotificationCenter.DefaultCenter.AddObserver(
                    (NSString)"IlegalDisplayEvent", // Threat-Event Identifier
                    delegate (NSNotification notification)
                    {
                        // Message shown to the user
                        var message = notification.UserInfo.ObjectForKey("message");

                        // Threat detection cause
                        var reasonData = notification.UserInfo.ObjectForKey("reasonData");

                        // Event reason code
                        var reasonCode = notification.UserInfo.ObjectForKey("reasonCode");

                        // Current threat event score
                        var currentThreatEventScore = notification.UserInfo.ObjectForKey("currentThreatEventScore");

                        // Total threat events score
                        var threatEventsScore = notification.UserInfo.ObjectForKey("threatEventsScore");

                        // Replace '' with your specific event context key
                        // var variable = notification.UserInfo.ObjectForKey("");

                        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
                    }
                );

x

NSNotificationCenter.DefaultCenter.AddObserver(
    (NSString)"IlegalDisplayEvent", // Threat-Event Identifier
    delegate (NSNotification notification)
    {
        // Message shown to the user
        var message = notification.UserInfo.ObjectForKey("message");
​
        // Threat detection cause
        var reasonData = notification.UserInfo.ObjectForKey("reasonData");
​
        // Event reason code
        var reasonCode = notification.UserInfo.ObjectForKey("reasonCode");
​
        // Current threat event score
        var currentThreatEventScore = notification.UserInfo.ObjectForKey("currentThreatEventScore");
​
        // Total threat events score
        var threatEventsScore = notification.UserInfo.ObjectForKey("threatEventsScore");
​
        // Replace '<Context Key>' with your specific event context key
        // var variable = notification.UserInfo.ObjectForKey("<Context Keys>");
​
        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
    }
);

                window.broadcaster.addEventListener("IlegalDisplayEvent", function(userInfo) {
                    var message = userInfo.message // Message shown to the user
                    var reasonData = userInfo.reasonData // Threat detection cause
                    var reasonCode = userInfo.reasonCode // Event reason code

                    // Current threat event score
                    var currentThreatEventScore = userInfo.currentThreatEventScore

                    // Total threat events score
                    var threatEventsScore = userInfo.threatEventsScore

                    // Replace '' with your specific event context key
                    // var variable = userInfo.

                    // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
                });

xxxxxxxxxx

window.broadcaster.addEventListener("IlegalDisplayEvent", function(userInfo) {
    var message = userInfo.message // Message shown to the user
    var reasonData = userInfo.reasonData // Threat detection cause
    var reasonCode = userInfo.reasonCode // Event reason code
​
    // Current threat event score
    var currentThreatEventScore = userInfo.currentThreatEventScore
​
    // Total threat events score
    var threatEventsScore = userInfo.threatEventsScore
​
    // Replace '<Context Key>' with your specific event context key
    // var variable = userInfo.<Context Keys>
​
    // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
});

                import 'dart:async';
                import 'package:flutter/material.dart';
                import 'package:flutter/services.dart';

                class PlatformChannel extends StatefulWidget {
                    const PlatformChannel({super.key});

                    @override
                    State createState() => _PlatformChannelState();
                }

                class _PlatformChannelState extends State {
                    // Replace with your EventChannel name
                    static const String _eventChannelName = "IlegalDisplayEvent";
                    static const EventChannel _eventChannel = EventChannel(_eventChannelName);

                    @override
                    void initState() {
                        super.initState();
                        _eventChannel.receiveBroadcastStream().listen(_onEvent, onError: _onError);
                    }

                    void _onEvent(Object? event) {
                        setState(() {
                            // Adapt this section based on your specific event data structure
                            var eventData = event as Map;

                            // Example: Accessing 'externalID' field from the event
                            var externalID = eventData['externalID'];

                            // Customize the rest of the fields based on your event structure
                            String message = eventData['message']; // Message shown to the user
                            String reasonData = eventData['reasonData']; // Threat detection cause
                            String reasonCode = eventData['reasonCode']; // Event reason code

                            // Current threat event score
                            String currentThreatEventScore = eventData['currentThreatEventScore'];

                            // Total threat events score
                            String threatEventsScore = eventData['threatEventsScore'];

                            // Replace '' with your specific event context key
                            // String variable = eventData[''];
                        });
                    }

                    // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
                }

x

import 'dart:async';
import 'package:flutter/material.dart';
import 'package:flutter/services.dart';
​
class PlatformChannel extends StatefulWidget {
    const PlatformChannel({super.key});
​
    @override
    State<PlatformChannel> createState() => _PlatformChannelState();
}
​
class _PlatformChannelState extends State<PlatformChannel> {
    // Replace with your EventChannel name
    static const String _eventChannelName = "IlegalDisplayEvent";
    static const EventChannel _eventChannel = EventChannel(_eventChannelName);
​
    @override
    void initState() {
        super.initState();
        _eventChannel.receiveBroadcastStream().listen(_onEvent, onError: _onError);
    }
​
    void _onEvent(Object? event) {
        setState(() {
            // Adapt this section based on your specific event data structure
            var eventData = event as Map;
​
            // Example: Accessing 'externalID' field from the event
            var externalID = eventData['externalID'];
​
            // Customize the rest of the fields based on your event structure
            String message = eventData['message']; // Message shown to the user
            String reasonData = eventData['reasonData']; // Threat detection cause
            String reasonCode = eventData['reasonCode']; // Event reason code
​
            // Current threat event score
            String currentThreatEventScore = eventData['currentThreatEventScore'];
​
            // Total threat events score
            String threatEventsScore = eventData['threatEventsScore'];
​
            // Replace '<Context Key>' with your specific event context key
            // String variable = eventData['<Context Keys>'];
        });
    }
​
    // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
}

Using Appdome, there are no development or coding prerequisites to build secured iOS Apps by using Anti Remote Desktop Control. There is no SDK and no library to code or implement in the app and no gateway to deploy in your network. All protections are built into each app and the resulting app is self-defending and self-protecting.

Releasing and Publishing Mobile Apps with Anti Remote Desktop Control

After successfully securing your app by using Appdome, there are several available options to complete your project, depending on your app lifecycle or workflow. These include:

Customizing, Configuring & Branding Secure Mobile Apps
Deploying/Publishing Secure mobile apps to Public or Private app stores
Releasing Secured Android & iOS Apps built on Appdome.

How Do I Learn More?

If you have any questions, please send them our way at support.appdome.com or via the chat window on the Appdome platform.

Thank you!

Thanks for visiting Appdome! Our mission is to secure every app on the planet by making mobile app security easy. We hope we’re living up to the mission with your project.

How to Block Remote Desktop Exploits in iOS Apps

What is Remote Desktop Control?

Why Block Remote Desktop Control in iOS Apps?

Prerequisites for Using Anti Remote Desktop Control:

Block Remote Desktop Control on iOS apps using Appdome

Upload the Mobile App to Appdome.

Upload an app to Appdome’s Mobile App Security Build System

Build the feature: Anti Remote Desktop Control.

Building Anti Remote Desktop Control by using Appdome’s DEV-API:

Building the Anti Remote Desktop Control feature via Appdome Console

Certify the Anti Remote Desktop Control feature in iOS Apps

Using Threat-Events™ for Remote Desktop Control Intelligence and Control in iOS Apps

Related Articles:

How Do I Learn More?

Thank you!

Supercharge the Experience in Mobile App Defense

Better User Experience in Mobile Defense

Shifting Dynamics in Mobile Fraud Prevention: A Call for Developer Responsibility

Eliminating Information Asymmetry in the Attack Chain With GenAI
